gadgetlib2::Constraint Class Reference

#include <constraint.hpp>

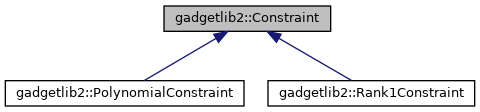

Inheritance diagram for gadgetlib2::Constraint:

Public Member Functions
	Constraint (const ::std::string &name)
::std::string	name () const
virtual bool	isSatisfied (const VariableAssignment &assignment, const PrintOptions &printOnFail) const =0
virtual ::std::string	annotation () const =0
virtual const Variable::set	getUsedVariables () const =0
virtual Polynomial	asPolynomial () const =0

Detailed Description

An abstract class for a field agnostic constraint. The derived classes will be field specific.

Definition at line 42 of file constraint.hpp.

Constructor & Destructor Documentation

Constraint()

gadgetlib2::Constraint::Constraint ( const ::std::string &  name )

explicit

Definition at line 40 of file constraint.cpp.

{ libff::UNUSED(name); }

Here is the call graph for this function:

Member Function Documentation

annotation()

virtual ::std::string gadgetlib2::Constraint::annotation ( ) const

pure virtual

Returns

the constraint in a human readable string format

Implemented in gadgetlib2::PolynomialConstraint, and gadgetlib2::Rank1Constraint.

asPolynomial()

virtual Polynomial gadgetlib2::Constraint::asPolynomial ( ) const

pure virtual

Implemented in gadgetlib2::PolynomialConstraint, and gadgetlib2::Rank1Constraint.

getUsedVariables()

virtual const Variable::set gadgetlib2::Constraint::getUsedVariables ( ) const

pure virtual

Implemented in gadgetlib2::PolynomialConstraint, and gadgetlib2::Rank1Constraint.

isSatisfied()

virtual bool gadgetlib2::Constraint::isSatisfied ( const VariableAssignment &  assignment, const PrintOptions &  printOnFail  ) const

pure virtual

@param[in] assignment  - An assignment of field elements for each

variable.

Parameters

[in]

printOnFail

- when set to true, an unsatisfied constraint will print to stderr information explaining why it is not satisfied.

Returns

true if constraint is satisfied by the assignment

Implemented in gadgetlib2::PolynomialConstraint, and gadgetlib2::Rank1Constraint.

name()

string gadgetlib2::Constraint::name

(

)

const

Returns

name of the constraint as a string

Definition at line 43 of file constraint.cpp.

{
#ifdef DEBUG
    return name_;
#else
    return "";
#endif
}

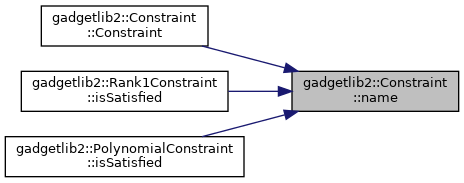

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /home/runner/work/libsnark/libsnark/libsnark/gadgetlib2/constraint.hpp
• /home/runner/work/libsnark/libsnark/libsnark/gadgetlib2/constraint.cpp
