libsnark::r1cs_ppzksnark_proof< ppT > Class Template Reference

#include <r1cs_ppzksnark.hpp>

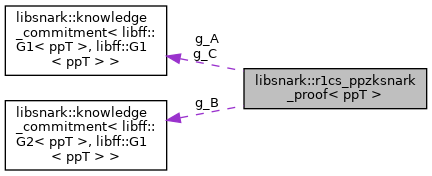

Collaboration diagram for libsnark::r1cs_ppzksnark_proof< ppT >:

Public Member Functions
	r1cs_ppzksnark_proof ()
	r1cs_ppzksnark_proof (knowledge_commitment< libff::G1< ppT >, libff::G1< ppT >> &&g_A, knowledge_commitment< libff::G2< ppT >, libff::G1< ppT >> &&g_B, knowledge_commitment< libff::G1< ppT >, libff::G1< ppT >> &&g_C, libff::G1< ppT > &&g_H, libff::G1< ppT > &&g_K)
size_t	G1_size () const
size_t	G2_size () const
size_t	size_in_bits () const
void	print_size () const
bool	is_well_formed () const
bool	operator== (const r1cs_ppzksnark_proof< ppT > &other) const

Public Attributes
knowledge_commitment< libff::G1< ppT >, libff::G1< ppT > >	g_A
knowledge_commitment< libff::G2< ppT >, libff::G1< ppT > >	g_B
knowledge_commitment< libff::G1< ppT >, libff::G1< ppT > >	g_C
libff::G1< ppT >	g_H
libff::G1< ppT >	g_K

Friends
std::ostream &	operator (std::ostream &out, const r1cs_ppzksnark_proof< ppT > &proof)
std::istream &	operator>> (std::istream &in, r1cs_ppzksnark_proof< ppT > &proof)

Detailed Description

template<typename ppT>
class libsnark::r1cs_ppzksnark_proof< ppT >

A proof for the R1CS ppzkSNARK.

While the proof has a structure, externally one merely opaquely produces, serializes/deserializes, and verifies proofs. We only expose some information about the structure for statistics purposes.

Definition at line 298 of file r1cs_ppzksnark.hpp.

Constructor & Destructor Documentation

r1cs_ppzksnark_proof() [1/2]

template<typename ppT >

libsnark::r1cs_ppzksnark_proof< ppT >::r1cs_ppzksnark_proof ( )

inline

Definition at line 323 of file r1cs_ppzksnark.hpp.

    {
        // invalid proof with valid curve points
        this->g_A.g = libff::G1<ppT>::one();
        this->g_A.h = libff::G1<ppT>::one();
        this->g_B.g = libff::G2<ppT>::one();
        this->g_B.h = libff::G1<ppT>::one();
        this->g_C.g = libff::G1<ppT>::one();
        this->g_C.h = libff::G1<ppT>::one();
        this->g_H = libff::G1<ppT>::one();
        this->g_K = libff::G1<ppT>::one();
    }

r1cs_ppzksnark_proof() [2/2]

template<typename ppT >

libsnark::r1cs_ppzksnark_proof< ppT >::r1cs_ppzksnark_proof ( knowledge_commitment< libff::G1< ppT >, libff::G1< ppT >> &&  g_A, knowledge_commitment< libff::G2< ppT >, libff::G1< ppT >> &&  g_B, knowledge_commitment< libff::G1< ppT >, libff::G1< ppT >> &&  g_C, libff::G1< ppT > &&  g_H, libff::G1< ppT > &&  g_K  )

inline

Definition at line 335 of file r1cs_ppzksnark.hpp.

        : g_A(std::move(g_A))
        , g_B(std::move(g_B))
        , g_C(std::move(g_C))
        , g_H(std::move(g_H))
        , g_K(std::move(g_K)){};

Member Function Documentation

G1_size()

template<typename ppT >

size_t libsnark::r1cs_ppzksnark_proof< ppT >::G1_size ( ) const

inline

Definition at line 347 of file r1cs_ppzksnark.hpp.

{ return 7; }

Here is the caller graph for this function:

G2_size()

template<typename ppT >

size_t libsnark::r1cs_ppzksnark_proof< ppT >::G2_size ( ) const

inline

Definition at line 349 of file r1cs_ppzksnark.hpp.

{ return 1; }

Here is the caller graph for this function:

is_well_formed()

template<typename ppT >

bool libsnark::r1cs_ppzksnark_proof< ppT >::is_well_formed ( ) const

inline

Definition at line 367 of file r1cs_ppzksnark.hpp.

    {
        return (
            g_A.g.is_well_formed() && g_A.h.is_well_formed() &&
            g_B.g.is_well_formed() && g_B.h.is_well_formed() &&
            g_C.g.is_well_formed() && g_C.h.is_well_formed() &&
            g_H.is_well_formed() && g_K.is_well_formed());
    }

operator==()

template<typename ppT >

bool libsnark::r1cs_ppzksnark_proof< ppT >::operator==

(

const r1cs_ppzksnark_proof< ppT > &

other

)

const

print_size()

template<typename ppT >

void libsnark::r1cs_ppzksnark_proof< ppT >::print_size ( ) const

inline

Definition at line 357 of file r1cs_ppzksnark.hpp.

    {
        libff::print_indent();
        printf("* G1 elements in proof: %zu\n", this->G1_size());
        libff::print_indent();
        printf("* G2 elements in proof: %zu\n", this->G2_size());
        libff::print_indent();
        printf("* Proof size in bits: %zu\n", this->size_in_bits());
    }

size_in_bits()

template<typename ppT >

size_t libsnark::r1cs_ppzksnark_proof< ppT >::size_in_bits ( ) const

inline

Definition at line 351 of file r1cs_ppzksnark.hpp.

    {
        return G1_size() * libff::G1<ppT>::size_in_bits() +
               G2_size() * libff::G2<ppT>::size_in_bits();
    }

Here is the caller graph for this function:

Friends And Related Function Documentation

operator

template<typename ppT >

std::ostream& operator ( std::ostream &  out, const r1cs_ppzksnark_proof< ppT > &  proof  )

friend

operator>>

template<typename ppT >

std::istream& operator>> ( std::istream &  in, r1cs_ppzksnark_proof< ppT > &  proof  )

friend

Member Data Documentation

g_A

template<typename ppT >

knowledge_commitment<libff::G1<ppT>, libff::G1<ppT> > libsnark::r1cs_ppzksnark_proof< ppT >::g_A

Definition at line 317 of file r1cs_ppzksnark.hpp.

g_B

template<typename ppT >

knowledge_commitment<libff::G2<ppT>, libff::G1<ppT> > libsnark::r1cs_ppzksnark_proof< ppT >::g_B

Definition at line 318 of file r1cs_ppzksnark.hpp.

g_C

template<typename ppT >

knowledge_commitment<libff::G1<ppT>, libff::G1<ppT> > libsnark::r1cs_ppzksnark_proof< ppT >::g_C

Definition at line 319 of file r1cs_ppzksnark.hpp.

g_H

template<typename ppT >

libff::G1<ppT> libsnark::r1cs_ppzksnark_proof< ppT >::g_H

Definition at line 320 of file r1cs_ppzksnark.hpp.

g_K

template<typename ppT >

libff::G1<ppT> libsnark::r1cs_ppzksnark_proof< ppT >::g_K

Definition at line 321 of file r1cs_ppzksnark.hpp.

---

The documentation for this class was generated from the following file:

• /home/runner/work/libsnark/libsnark/libsnark/zk_proof_systems/ppzksnark/r1cs_ppzksnark/r1cs_ppzksnark.hpp
