#include <r1cs_ppzksnark.hpp>

Collaboration diagram for libsnark::r1cs_ppzksnark_proving_key< ppT >:

Public Member Functions
	r1cs_ppzksnark_proving_key ()

r1cs_ppzksnark_proving_key< ppT > &	operator= (const r1cs_ppzksnark_proving_key< ppT > &other)=default

	r1cs_ppzksnark_proving_key (const r1cs_ppzksnark_proving_key< ppT > &other)=default

	r1cs_ppzksnark_proving_key (r1cs_ppzksnark_proving_key< ppT > &&other)=default

	r1cs_ppzksnark_proving_key (knowledge_commitment_vector< libff::G1< ppT >, libff::G1< ppT >> &&A_query, knowledge_commitment_vector< libff::G2< ppT >, libff::G1< ppT >> &&B_query, knowledge_commitment_vector< libff::G1< ppT >, libff::G1< ppT >> &&C_query, libff::G1_vector< ppT > &&H_query, libff::G1_vector< ppT > &&K_query, r1cs_ppzksnark_constraint_system< ppT > &&constraint_system)

size_t	G1_size () const

size_t	G2_size () const

size_t	G1_sparse_size () const

size_t	G2_sparse_size () const

size_t	size_in_bits () const

void	print_size () const

bool	operator== (const r1cs_ppzksnark_proving_key< ppT > &other) const

Public Attributes
knowledge_commitment_vector< libff::G1< ppT >, libff::G1< ppT > >	A_query

knowledge_commitment_vector< libff::G2< ppT >, libff::G1< ppT > >	B_query

knowledge_commitment_vector< libff::G1< ppT >, libff::G1< ppT > >	C_query

libff::G1_vector< ppT >	H_query

libff::G1_vector< ppT >	K_query

r1cs_ppzksnark_constraint_system< ppT >	constraint_system

Friends
std::ostream &	operator (std::ostream &out, const r1cs_ppzksnark_proving_key< ppT > &pk)

std::istream &	operator>> (std::istream &in, r1cs_ppzksnark_proving_key< ppT > &pk)

Detailed Description

template<typename ppT>
class libsnark::r1cs_ppzksnark_proving_key< ppT >

A proving key for the R1CS ppzkSNARK.

Definition at line 62 of file r1cs_ppzksnark.hpp.

Constructor & Destructor Documentation

◆ r1cs_ppzksnark_proving_key() [1/4]

template<typename ppT >

libsnark::r1cs_ppzksnark_proving_key< ppT >::r1cs_ppzksnark_proving_key ( )

inline

Definition at line 85 of file r1cs_ppzksnark.hpp.

85 {};

◆ r1cs_ppzksnark_proving_key() [2/4]

template<typename ppT >

libsnark::r1cs_ppzksnark_proving_key< ppT >::r1cs_ppzksnark_proving_key ( const r1cs_ppzksnark_proving_key< ppT > & other )

default

◆ r1cs_ppzksnark_proving_key() [3/4]

template<typename ppT >

libsnark::r1cs_ppzksnark_proving_key< ppT >::r1cs_ppzksnark_proving_key ( r1cs_ppzksnark_proving_key< ppT > && other )

default

◆ r1cs_ppzksnark_proving_key() [4/4]

template<typename ppT >

libsnark::r1cs_ppzksnark_proving_key< ppT >::r1cs_ppzksnark_proving_key	(	knowledge_commitment_vector< libff::G1< ppT >, libff::G1< ppT >> &&	A_query,
		knowledge_commitment_vector< libff::G2< ppT >, libff::G1< ppT >> &&	B_query,
		knowledge_commitment_vector< libff::G1< ppT >, libff::G1< ppT >> &&	C_query,
		libff::G1_vector< ppT > &&	H_query,
		libff::G1_vector< ppT > &&	K_query,
		r1cs_ppzksnark_constraint_system< ppT > &&	constraint_system
	)

inline

Definition at line 92 of file r1cs_ppzksnark.hpp.

         : A_query(std::move(A_query))
         , B_query(std::move(B_query))
         , C_query(std::move(C_query))
         , H_query(std::move(H_query))
         , K_query(std::move(K_query))
         , constraint_system(std::move(constraint_system)){};

Member Function Documentation

◆ G1_size()

template<typename ppT >

size_t libsnark::r1cs_ppzksnark_proving_key< ppT >::G1_size ( ) const

inline

Definition at line 106 of file r1cs_ppzksnark.hpp.

     {
         return 2 * (A_query.domain_size() + C_query.domain_size()) +
                B_query.domain_size() + H_query.size() + K_query.size();
     }

Here is the caller graph for this function:

◆ G1_sparse_size()

template<typename ppT >

size_t libsnark::r1cs_ppzksnark_proving_key< ppT >::G1_sparse_size ( ) const

inline

Definition at line 114 of file r1cs_ppzksnark.hpp.

     {
         return 2 * (A_query.size() + C_query.size()) + B_query.size() +
                H_query.size() + K_query.size();
     }

Here is the caller graph for this function:

◆ G2_size()

template<typename ppT >

size_t libsnark::r1cs_ppzksnark_proving_key< ppT >::G2_size ( ) const

inline

Definition at line 112 of file r1cs_ppzksnark.hpp.

112 { return B_query.domain_size(); }

Here is the caller graph for this function:

◆ G2_sparse_size()

template<typename ppT >

size_t libsnark::r1cs_ppzksnark_proving_key< ppT >::G2_sparse_size ( ) const

inline

Definition at line 120 of file r1cs_ppzksnark.hpp.

120 { return B_query.size(); }

Here is the caller graph for this function:

◆ operator=()

template<typename ppT >

r1cs_ppzksnark_proving_key<ppT>& libsnark::r1cs_ppzksnark_proving_key< ppT >::operator= ( const r1cs_ppzksnark_proving_key< ppT > & other )

default

◆ operator==()

template<typename ppT >

bool libsnark::r1cs_ppzksnark_proving_key< ppT >::operator== ( const r1cs_ppzksnark_proving_key< ppT > & other ) const

◆ print_size()

template<typename ppT >

void libsnark::r1cs_ppzksnark_proving_key< ppT >::print_size ( ) const

inline

Definition at line 129 of file r1cs_ppzksnark.hpp.

     {
         libff::print_indent();
         printf("* G1 elements in PK: %zu\n", this->G1_size());
         libff::print_indent();
         printf("* Non-zero G1 elements in PK: %zu\n", this->G1_sparse_size());
         libff::print_indent();
         printf("* G2 elements in PK: %zu\n", this->G2_size());
         libff::print_indent();
         printf("* Non-zero G2 elements in PK: %zu\n", this->G2_sparse_size());
         libff::print_indent();
         printf("* PK size in bits: %zu\n", this->size_in_bits());
     }

◆ size_in_bits()

template<typename ppT >

size_t libsnark::r1cs_ppzksnark_proving_key< ppT >::size_in_bits ( ) const

inline

Definition at line 122 of file r1cs_ppzksnark.hpp.

     {
         return A_query.size_in_bits() + B_query.size_in_bits() +
                C_query.size_in_bits() + libff::size_in_bits(H_query) +
                libff::size_in_bits(K_query);
     }

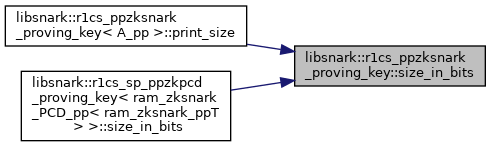

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator

template<typename ppT >

std::ostream& operator	(	std::ostream &	out,
		const r1cs_ppzksnark_proving_key< ppT > &	pk
	)

friend

◆ operator>>

template<typename ppT >

std::istream& operator>>	(	std::istream &	in,
		r1cs_ppzksnark_proving_key< ppT > &	pk
	)

friend

Member Data Documentation

◆ A_query

template<typename ppT >

knowledge_commitment_vector<libff::G1<ppT>, libff::G1<ppT> > libsnark::r1cs_ppzksnark_proving_key< ppT >::A_query

Definition at line 77 of file r1cs_ppzksnark.hpp.

◆ B_query

template<typename ppT >

knowledge_commitment_vector<libff::G2<ppT>, libff::G1<ppT> > libsnark::r1cs_ppzksnark_proving_key< ppT >::B_query

Definition at line 78 of file r1cs_ppzksnark.hpp.

◆ C_query

template<typename ppT >

knowledge_commitment_vector<libff::G1<ppT>, libff::G1<ppT> > libsnark::r1cs_ppzksnark_proving_key< ppT >::C_query

Definition at line 79 of file r1cs_ppzksnark.hpp.

◆ constraint_system

template<typename ppT >

r1cs_ppzksnark_constraint_system<ppT> libsnark::r1cs_ppzksnark_proving_key< ppT >::constraint_system

Definition at line 83 of file r1cs_ppzksnark.hpp.

◆ H_query

template<typename ppT >

libff::G1_vector<ppT> libsnark::r1cs_ppzksnark_proving_key< ppT >::H_query

Definition at line 80 of file r1cs_ppzksnark.hpp.

◆ K_query

template<typename ppT >

libff::G1_vector<ppT> libsnark::r1cs_ppzksnark_proving_key< ppT >::K_query

Definition at line 81 of file r1cs_ppzksnark.hpp.

The documentation for this class was generated from the following file:

/home/runner/work/libsnark/libsnark/libsnark/zk_proof_systems/ppzksnark/r1cs_ppzksnark/r1cs_ppzksnark.hpp
