libff::bn128_G1 Class Reference

#include <bn128_g1.hpp>

Collaboration diagram for libff::bn128_G1:
Collaboration graph
[legend]

Public Types

typedef bn128_Fq base_field

typedef bn128_Fr scalar_field


Public Member Functions

void fill_coord (bn::Fp coord[3]) const

 bn128_G1 ()

 bn128_G1 (bn::Fp coord[3])

void print () const

void print_coordinates () const

void to_affine_coordinates ()

void to_special ()

bool is_special () const

bool is_zero () const

bool operator== (const bn128_G1 &other) const

bool operator!= (const bn128_G1 &other) const

bn128_G1 operator+ (const bn128_G1 &other) const

bn128_G1 operator- () const

bn128_G1 operator- (const bn128_G1 &other) const

bn128_G1 add (const bn128_G1 &other) const

bn128_G1 mixed_add (const bn128_G1 &other) const

bn128_G1 dbl () const

bn128_G1 mul_by_cofactor () const

bool is_well_formed () const

bool is_in_safe_subgroup () const

void write_uncompressed (std::ostream &) const

void write_compressed (std::ostream &) const


Static Public Member Functions

static const bn128_G1zero ()

static const bn128_G1one ()

static bn128_G1 random_element ()

static size_t size_in_bits ()

static bigint< base_field::num_limbsbase_field_char ()

static bigint< scalar_field::num_limbsorder ()

static void read_uncompressed (std::istream &, bn128_G1 &)

static void read_compressed (std::istream &, bn128_G1 &)

static void batch_to_special_all_non_zeros (std::vector< bn128_G1 > &vec)


Public Attributes

bn::Fp X

bn::Fp Y

bn::Fp Z


Static Public Attributes

static std::vector< size_t > wnaf_window_table

static std::vector< size_t > fixed_base_exp_window_table

static bn128_G1 G1_zero

static bn128_G1 G1_one

static const mp_size_t h_bitcount = 1

static const mp_size_t h_limbs

static bigint< h_limbsh


Detailed Description

Definition at line 23 of file bn128_g1.hpp.

Member Typedef Documentation

◆ base_field

Definition at line 38 of file bn128_g1.hpp.

◆ scalar_field

Definition at line 39 of file bn128_g1.hpp.

Constructor & Destructor Documentation

◆ bn128_G1() [1/2]

libff::bn128_G1::bn128_G1 ( )

Definition at line 72 of file bn128_g1.cpp.

73 {
74  this->X = G1_zero.X;
75  this->Y = G1_zero.Y;
76  this->Z = G1_zero.Z;
77 }

◆ bn128_G1() [2/2]

libff::bn128_G1::bn128_G1 ( bn::Fp  coord[3])
inline

Definition at line 57 of file bn128_g1.hpp.

57 : X(coord[0]), Y(coord[1]), Z(coord[2]){};

Member Function Documentation

◆ add()

bn128_G1 libff::bn128_G1::add ( const bn128_G1 other) const

Definition at line 195 of file bn128_g1.cpp.

196 {
197 #ifdef PROFILE_OP_COUNTS
198  this->add_cnt++;
199 #endif
200
201  bn::Fp this_coord[3], other_coord[3], result_coord[3];
202  this->fill_coord(this_coord);
203  other.fill_coord(other_coord);
204  bn::ecop::ECAdd(result_coord, this_coord, other_coord);
205
206  bn128_G1 result(result_coord);
207  return result;
208 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ base_field_char()

static bigint<base_field::num_limbs> libff::bn128_G1::base_field_char ( )
inlinestatic

Definition at line 88 of file bn128_g1.hpp.

89  {
90  return base_field::field_char();
91  }
Here is the call graph for this function:

◆ batch_to_special_all_non_zeros()

void libff::bn128_G1::batch_to_special_all_non_zeros ( std::vector< bn128_G1 > &  vec)
static

Definition at line 469 of file bn128_g1.cpp.

470 {
471  std::vector<bn::Fp> Z_vec;
472  Z_vec.reserve(vec.size());
473
474  for (auto &el : vec) {
475  Z_vec.emplace_back(el.Z);
476  }
477  bn_batch_invert<bn::Fp>(Z_vec);
478
479  const bn::Fp one = 1;
480
481  for (size_t i = 0; i < vec.size(); ++i) {
482  bn::Fp Z2, Z3;
483  bn::Fp::square(Z2, Z_vec[i]);
484  bn::Fp::mul(Z3, Z2, Z_vec[i]);
485
486  bn::Fp::mul(vec[i].X, vec[i].X, Z2);
487  bn::Fp::mul(vec[i].Y, vec[i].Y, Z3);
488  vec[i].Z = one;
489  }
490 }
Here is the call graph for this function:

◆ dbl()

bn128_G1 libff::bn128_G1::dbl ( ) const

Definition at line 294 of file bn128_g1.cpp.

295 {
296 #ifdef PROFILE_OP_COUNTS
297  this->dbl_cnt++;
298 #endif
299
300  bn::Fp this_coord[3], result_coord[3];
301  this->fill_coord(this_coord);
302  bn::ecop::ECDouble(result_coord, this_coord);
303
304  bn128_G1 result(result_coord);
305  return result;
306 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ fill_coord()

void libff::bn128_G1::fill_coord ( bn::Fp  coord[3]) const
inline

Definition at line 48 of file bn128_g1.hpp.

49  {
50  coord[0] = this->X;
51  coord[1] = this->Y;
52  coord[2] = this->Z;
53  return;
54  };

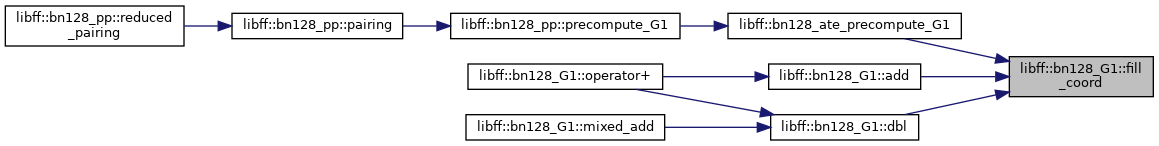

Here is the caller graph for this function:

◆ is_in_safe_subgroup()

bool libff::bn128_G1::is_in_safe_subgroup ( ) const

Definition at line 352 of file bn128_g1.cpp.

352 { return true; }

◆ is_special()

bool libff::bn128_G1::is_special ( ) const

Definition at line 121 of file bn128_g1.cpp.

121 { return (this->is_zero() || this->Z == 1); }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ is_well_formed()

bool libff::bn128_G1::is_well_formed ( ) const

Definition at line 323 of file bn128_g1.cpp.

324 {
325  if (this->is_zero()) {
326  return true;
327  } else {
328  /*
329  y^2 = x^3 + b
330
331  We are using Jacobian coordinates, so equation we need to check is
332  actually
333
334  (y/z^3)^2 = (x/z^2)^3 + b
335  y^2 / z^6 = x^3 / z^6 + b
336  y^2 = x^3 + b z^6
337  */
338  bn::Fp X2, Y2, Z2;
339  bn::Fp::square(X2, this->X);
340  bn::Fp::square(Y2, this->Y);
341  bn::Fp::square(Z2, this->Z);
342
343  bn::Fp X3, Z3, Z6;
344  bn::Fp::mul(X3, X2, this->X);
345  bn::Fp::mul(Z3, Z2, this->Z);
346  bn::Fp::square(Z6, Z3);
347
348  return (Y2 == X3 + bn128_coeff_b * Z6);
349  }
350 }
Here is the call graph for this function:

◆ is_zero()

bool libff::bn128_G1::is_zero ( ) const

Definition at line 123 of file bn128_g1.cpp.

123 { return Z.isZero(); }

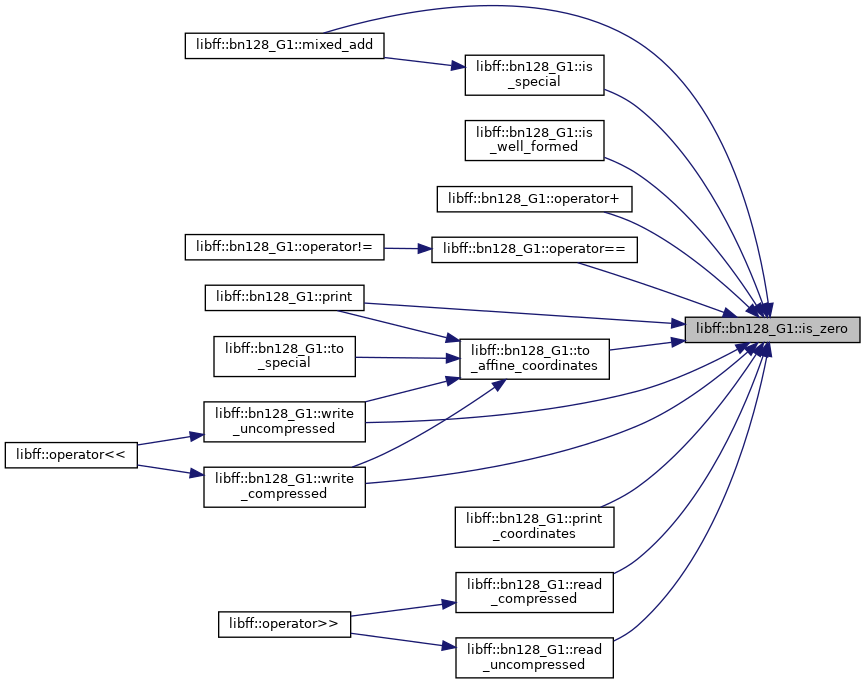

Here is the caller graph for this function:

◆ mixed_add()

bn128_G1 libff::bn128_G1::mixed_add ( const bn128_G1 other) const

Definition at line 210 of file bn128_g1.cpp.

211 {
212  if (this->is_zero()) {
213  return other;
214  }
215
216  if (other.is_zero()) {
217  return *this;
218  }
219
220  // no need to handle points of order 2,4
221  // (they cannot exist in a prime-order subgroup)
222
223 #ifdef DEBUG
224  assert(other.is_special());
225 #endif
226
227  // check for doubling case
228
229  // using Jacobian coordinates so:
230  // (X1:Y1:Z1) = (X2:Y2:Z2)
231  // iff
232  // X1/Z1^2 == X2/Z2^2 and Y1/Z1^3 == Y2/Z2^3
233  // iff
234  // X1 * Z2^2 == X2 * Z1^2 and Y1 * Z2^3 == Y2 * Z1^3
235
236  // we know that Z2 = 1
237
238  bn::Fp Z1Z1;
239  bn::Fp::square(Z1Z1, this->Z);
240  const bn::Fp &U1 = this->X;
241  bn::Fp U2;
242  bn::Fp::mul(U2, other.X, Z1Z1);
243  bn::Fp Z1_cubed;
244  bn::Fp::mul(Z1_cubed, this->Z, Z1Z1);
245
246  const bn::Fp &S1 = this->Y;
247  bn::Fp S2;
248  bn::Fp::mul(S2, other.Y, Z1_cubed); // S2 = Y2*Z1*Z1Z1
249
250  if (U1 == U2 && S1 == S2) {
251  // dbl case; nothing of above can be reused
252  return this->dbl();
253  }
254
255 #ifdef PROFILE_OP_COUNTS
256  this->add_cnt++;
257 #endif
258
259  bn128_G1 result;
260  bn::Fp H, HH, I, J, r, V, tmp;
261  // H = U2-X1
262  bn::Fp::sub(H, U2, this->X);
263  // HH = H^2
264  bn::Fp::square(HH, H);
265  // I = 4*HH
266  bn::Fp::add(tmp, HH, HH);
267  bn::Fp::add(I, tmp, tmp);
268  // J = H*I
269  bn::Fp::mul(J, H, I);
270  // r = 2*(S2-Y1)
271  bn::Fp::sub(tmp, S2, this->Y);
272  bn::Fp::add(r, tmp, tmp);
273  // V = X1*I
274  bn::Fp::mul(V, this->X, I);
275  // X3 = r^2-J-2*V
276  bn::Fp::square(result.X, r);
277  bn::Fp::sub(result.X, result.X, J);
278  bn::Fp::sub(result.X, result.X, V);
279  bn::Fp::sub(result.X, result.X, V);
280  // Y3 = r*(V-X3)-2*Y1*J
281  bn::Fp::sub(tmp, V, result.X);
282  bn::Fp::mul(result.Y, r, tmp);
283  bn::Fp::mul(tmp, this->Y, J);
284  bn::Fp::sub(result.Y, result.Y, tmp);
285  bn::Fp::sub(result.Y, result.Y, tmp);
286  // Z3 = (Z1+H)^2-Z1Z1-HH
287  bn::Fp::add(tmp, this->Z, H);
288  bn::Fp::square(result.Z, tmp);
289  bn::Fp::sub(result.Z, result.Z, Z1Z1);
290  bn::Fp::sub(result.Z, result.Z, HH);
291  return result;
292 }

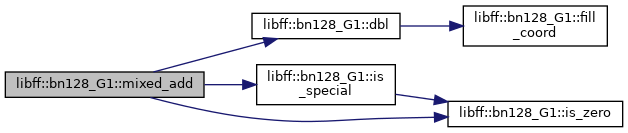

Here is the call graph for this function:

◆ mul_by_cofactor()

bn128_G1 libff::bn128_G1::mul_by_cofactor ( ) const

Definition at line 308 of file bn128_g1.cpp.

309 {
310  // Cofactor = 1
311  return (*this);
312 }

◆ one()

const bn128_G1 & libff::bn128_G1::one ( )
static

Definition at line 316 of file bn128_g1.cpp.

316 { return G1_one; }
Here is the caller graph for this function:

◆ operator!=()

bool libff::bn128_G1::operator!= ( const bn128_G1 other) const

Definition at line 156 of file bn128_g1.cpp.

157 {
158  return !(operator==(other));
159 }
Here is the call graph for this function:

◆ operator+()

bn128_G1 libff::bn128_G1::operator+ ( const bn128_G1 other) const

Definition at line 161 of file bn128_g1.cpp.

162 {
163  // handle special cases having to do with O
164  if (this->is_zero()) {
165  return other;
166  }
167
168  if (other.is_zero()) {
169  return *this;
170  }
171
172  // no need to handle points of order 2,4
173  // (they cannot exist in a prime-order subgroup)
174
175  // handle double case, and then all the rest
176  if (this->operator==(other)) {
177  return this->dbl();
178  } else {
179  return this->add(other);
180  }
181 }

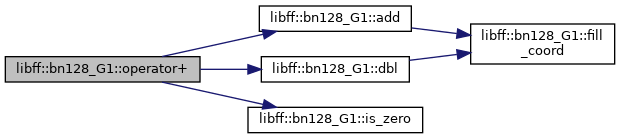

Here is the call graph for this function:

◆ operator-() [1/2]

bn128_G1 libff::bn128_G1::operator- ( ) const

Definition at line 183 of file bn128_g1.cpp.

184 {
185  bn128_G1 result(*this);
186  bn::Fp::neg(result.Y, result.Y);
187  return result;
188 }

◆ operator-() [2/2]

bn128_G1 libff::bn128_G1::operator- ( const bn128_G1 other) const

Definition at line 190 of file bn128_g1.cpp.

191 {
192  return (*this) + (-other);
193 }

◆ operator==()

bool libff::bn128_G1::operator== ( const bn128_G1 other) const

Definition at line 125 of file bn128_g1.cpp.

126 {
127  if (this->is_zero()) {
128  return other.is_zero();
129  }
130
131  if (other.is_zero()) {
132  return false;
133  }
134
135  /* now neither is O */
136
137  bn::Fp Z1sq, Z2sq, lhs, rhs;
138  bn::Fp::square(Z1sq, this->Z);
139  bn::Fp::square(Z2sq, other.Z);
140  bn::Fp::mul(lhs, Z2sq, this->X);
141  bn::Fp::mul(rhs, Z1sq, other.X);
142
143  if (lhs != rhs) {
144  return false;
145  }
146
147  bn::Fp Z1cubed, Z2cubed;
148  bn::Fp::mul(Z1cubed, Z1sq, this->Z);
149  bn::Fp::mul(Z2cubed, Z2sq, other.Z);
150  bn::Fp::mul(lhs, Z2cubed, this->Y);
151  bn::Fp::mul(rhs, Z1cubed, other.Y);
152
153  return (lhs == rhs);
154 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ order()

static bigint<scalar_field::num_limbs> libff::bn128_G1::order ( )
inlinestatic

Definition at line 92 of file bn128_g1.hpp.

93  {
94  return scalar_field::field_char();
95  }
Here is the call graph for this function:

◆ print()

void libff::bn128_G1::print ( ) const

Definition at line 79 of file bn128_g1.cpp.

80 {
81  if (this->is_zero()) {
82  printf("O\n");
83  } else {
84  bn128_G1 copy(*this);
85  copy.to_affine_coordinates();
86  std::cout << "(" << copy.X.toString(10) << " : " << copy.Y.toString(10)
87  << " : " << copy.Z.toString(10) << ")\n";
88  }
89 }
Here is the call graph for this function:

◆ print_coordinates()

void libff::bn128_G1::print_coordinates ( ) const

Definition at line 91 of file bn128_g1.cpp.

92 {
93  if (this->is_zero()) {
94  printf("O\n");
95  } else {
96  std::cout << "(" << X.toString(10) << " : " << Y.toString(10) << " : "
97  << Z.toString(10) << ")\n";
98  }
99 }
Here is the call graph for this function:

◆ random_element()

bn128_G1 libff::bn128_G1::random_element ( )
static

Definition at line 318 of file bn128_g1.cpp.

319 {
320  return bn128_Fr::random_element().as_bigint() * G1_one;
321 }
Here is the call graph for this function:

◆ read_compressed()

void libff::bn128_G1::read_compressed ( std::istream &  in,
bn128_G1 g
)
static

Definition at line 408 of file bn128_g1.cpp.

409 {
410  char is_zero;
411  // this reads is_zero;
412  in.read((char *)&is_zero, 1);
413  is_zero -= '0';
415
416  bn::Fp tX;
417 #ifndef BINARY_OUTPUT
418  in >> tX;
419 #else
420  in.read((char *)&tX, sizeof(tX));
421 #endif
423  unsigned char Y_lsb;
424  in.read((char *)&Y_lsb, 1);
425  Y_lsb -= '0';
426
427  // y = +/- sqrt(x^3 + b)
428  if (!is_zero) {
429  g.X = tX;
430  bn::Fp tX2, tY2;
431  bn::Fp::square(tX2, tX);
432  bn::Fp::mul(tY2, tX2, tX);
433  bn::Fp::add(tY2, tY2, bn128_coeff_b);
434
435  g.Y = bn128_G1::sqrt(tY2);
436  if ((((unsigned char *)&g.Y)[0] & 1) != Y_lsb) {
437  bn::Fp::neg(g.Y, g.Y);
438  }
439  }
440
441  /* finalize */
442  if (!is_zero) {
443  g.Z = bn::Fp(1);
444  } else {
445  g = bn128_G1::zero();
446  }
447 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ read_uncompressed()

void libff::bn128_G1::read_uncompressed ( std::istream &  in,
bn128_G1 g
)
static

Definition at line 384 of file bn128_g1.cpp.

385 {
386  char is_zero;
387  in.read((char *)&is_zero, 1); // this reads is_zero;
388  is_zero -= '0';
390
391 #ifndef BINARY_OUTPUT
392  in >> g.X;
394  in >> g.Y;
395 #else
396  in.read((char *)&g.X, sizeof(g.X));
397  in.read((char *)&g.Y, sizeof(g.Y));
398 #endif
399
400  /* finalize */
401  if (!is_zero) {
402  g.Z = bn::Fp(1);
403  } else {
404  g = bn128_G1::zero();
405  }
406 }

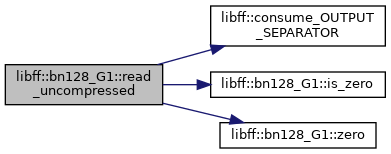

Here is the call graph for this function:
Here is the caller graph for this function:

◆ size_in_bits()

static size_t libff::bn128_G1::size_in_bits ( )
inlinestatic

Definition at line 87 of file bn128_g1.hpp.

87 { return bn128_Fq::size_in_bits() + 1; }
Here is the call graph for this function:

◆ to_affine_coordinates()

void libff::bn128_G1::to_affine_coordinates ( )

Definition at line 101 of file bn128_g1.cpp.

102 {
103  if (this->is_zero()) {
104  X = 0;
105  Y = 1;
106  Z = 0;
107  } else {
108  bn::Fp r;
109  r = Z;
110  r.inverse();
111  bn::Fp::square(Z, r);
112  X *= Z;
113  r *= Z;
114  Y *= r;
115  Z = 1;
116  }
117 }
Here is the call graph for this function:

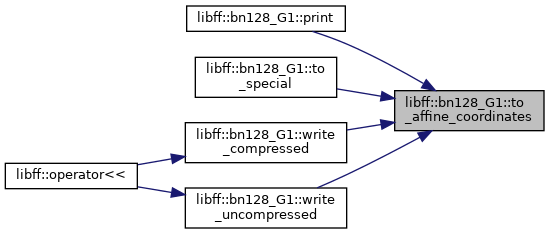

Here is the caller graph for this function:

◆ to_special()

void libff::bn128_G1::to_special ( )

Definition at line 119 of file bn128_g1.cpp.

119 { this->to_affine_coordinates(); }
Here is the call graph for this function:

◆ write_compressed()

void libff::bn128_G1::write_compressed ( std::ostream &  out) const

Definition at line 369 of file bn128_g1.cpp.

370 {
371  bn128_G1 gcopy(*this);
372  gcopy.to_affine_coordinates();
373
374  out << (gcopy.is_zero() ? '1' : '0') << OUTPUT_SEPARATOR;
375
376 #ifndef BINARY_OUTPUT
377  out << gcopy.X;
378 #else
379  out.write((char *)&gcopy.X, sizeof(gcopy.X));
380 #endif
381  out << OUTPUT_SEPARATOR << (((unsigned char *)&gcopy.Y)[0] & 1 ? '1' : '0');
382 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ write_uncompressed()

void libff::bn128_G1::write_uncompressed ( std::ostream &  out) const

Definition at line 354 of file bn128_g1.cpp.

355 {
356  bn128_G1 gcopy(*this);
357  gcopy.to_affine_coordinates();
358
359  out << (gcopy.is_zero() ? '1' : '0') << OUTPUT_SEPARATOR;
360
361 #ifndef BINARY_OUTPUT
362  out << gcopy.X << OUTPUT_SEPARATOR << gcopy.Y;
363 #else
364  out.write((char *)&gcopy.X, sizeof(gcopy.X));
365  out.write((char *)&gcopy.Y, sizeof(gcopy.Y));
366 #endif
367 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ zero()

const bn128_G1 & libff::bn128_G1::zero ( )
static

Definition at line 314 of file bn128_g1.cpp.

314 { return G1_zero; }

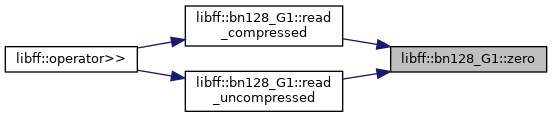

Here is the caller graph for this function:

Member Data Documentation

◆ fixed_base_exp_window_table

std::vector< size_t > libff::bn128_G1::fixed_base_exp_window_table
static

Definition at line 34 of file bn128_g1.hpp.

◆ G1_one

bn128_G1 libff::bn128_G1::G1_one
static

Definition at line 36 of file bn128_g1.hpp.

◆ G1_zero

bn128_G1 libff::bn128_G1::G1_zero
static

Definition at line 35 of file bn128_g1.hpp.

◆ h

bigint< bn128_G1::h_limbs > libff::bn128_G1::h
static

Definition at line 45 of file bn128_g1.hpp.

◆ h_bitcount

const mp_size_t libff::bn128_G1::h_bitcount = 1
static

Definition at line 42 of file bn128_g1.hpp.

◆ h_limbs

const mp_size_t libff::bn128_G1::h_limbs
static
Initial value:
=
(h_bitcount + GMP_NUMB_BITS - 1) / GMP_NUMB_BITS

Definition at line 43 of file bn128_g1.hpp.

◆ wnaf_window_table

std::vector< size_t > libff::bn128_G1::wnaf_window_table
static

Definition at line 33 of file bn128_g1.hpp.

◆ X

bn::Fp libff::bn128_G1::X

Definition at line 47 of file bn128_g1.hpp.

◆ Y

bn::Fp libff::bn128_G1::Y

Definition at line 47 of file bn128_g1.hpp.

◆ Z

bn::Fp libff::bn128_G1::Z

Definition at line 47 of file bn128_g1.hpp.


The documentation for this class was generated from the following files:
libff::bn128_G1::G1_zero
static bn128_G1 G1_zero
Definition: bn128_g1.hpp:35
libff::bn128_G1::h_bitcount
static const mp_size_t h_bitcount
Definition: bn128_g1.hpp:42
libff::Fp_model::random_element
static Fp_model< n, modulus > random_element()
returns random element of Fp_model
libff::bn128_G1::dbl
bn128_G1 dbl() const
Definition: bn128_g1.cpp:294
libff::bn128_G1::operator==
bool operator==(const bn128_G1 &other) const
Definition: bn128_g1.cpp:125
libff::bn128_coeff_b
bn::Fp bn128_coeff_b
Definition: bn128_init.cpp:19
OUTPUT_SEPARATOR
#define OUTPUT_SEPARATOR
Definition: serialization.hpp:69
libff::Fp_model::size_in_bits
static size_t size_in_bits()
Definition: fp.hpp:134
libff::consume_OUTPUT_SEPARATOR
void consume_OUTPUT_SEPARATOR(std::istream &in)
libff::bn128_G1::to_affine_coordinates
void to_affine_coordinates()
Definition: bn128_g1.cpp:101
libff::bn128_G1::Z
bn::Fp Z
Definition: bn128_g1.hpp:47
libff::Fp_model::field_char
static const bigint< n > & field_char()
Definition: fp.hpp:136
libff::bn128_G1::one
static const bn128_G1 & one()
Definition: bn128_g1.cpp:316
libff::bn128_G1::Y
bn::Fp Y
Definition: bn128_g1.hpp:47
libff::bn128_G1::bn128_G1
bn128_G1()
Definition: bn128_g1.cpp:72
libff::bn128_G1::fill_coord
void fill_coord(bn::Fp coord[3]) const
Definition: bn128_g1.hpp:48
libff::bn128_G1::zero
static const bn128_G1 & zero()
Definition: bn128_g1.cpp:314
libff::bn128_G1::add
bn128_G1 add(const bn128_G1 &other) const
Definition: bn128_g1.cpp:195
libff::bn128_G1::G1_one
static bn128_G1 G1_one
Definition: bn128_g1.hpp:36
libff::bn128_G1::is_zero
bool is_zero() const
Definition: bn128_g1.cpp:123
libff::bn128_G1::X
bn::Fp X
Definition: bn128_g1.hpp:47
