Clearmatics Libff  0.1
C++ library for Finite Fields and Elliptic Curves
Public Types | Public Member Functions | Static Public Member Functions | Public Attributes | Static Public Attributes | List of all members
libff::mnt4_G2 Class Reference

#include <mnt4_g2.hpp>

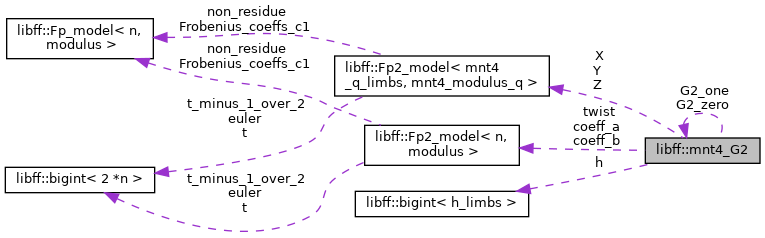

Collaboration diagram for libff::mnt4_G2:
Collaboration graph
[legend]

Public Types

typedef mnt4_Fq base_field

typedef mnt4_Fq2 twist_field

typedef mnt4_Fr scalar_field


Public Member Functions

 mnt4_G2 ()

 mnt4_G2 (const mnt4_Fq2 &X, const mnt4_Fq2 &Y, const mnt4_Fq2 &Z)

void print () const

void print_coordinates () const

void to_affine_coordinates ()

void to_special ()

bool is_special () const

bool is_zero () const

bool operator== (const mnt4_G2 &other) const

bool operator!= (const mnt4_G2 &other) const

mnt4_G2 operator+ (const mnt4_G2 &other) const

mnt4_G2 operator- () const

mnt4_G2 operator- (const mnt4_G2 &other) const

mnt4_G2 add (const mnt4_G2 &other) const

mnt4_G2 mixed_add (const mnt4_G2 &other) const

mnt4_G2 dbl () const

mnt4_G2 mul_by_q () const

mnt4_G2 mul_by_cofactor () const

bool is_well_formed () const

bool is_in_safe_subgroup () const

void write_uncompressed (std::ostream &) const

void write_compressed (std::ostream &) const


Static Public Member Functions

static mnt4_Fq2 mul_by_a (const mnt4_Fq2 &elt)

static mnt4_Fq2 mul_by_b (const mnt4_Fq2 &elt)

static const mnt4_G2zero ()

static const mnt4_G2one ()

static mnt4_G2 random_element ()

static size_t size_in_bits ()

static bigint< mnt4_Fq::num_limbsbase_field_char ()

static bigint< mnt4_Fr::num_limbsorder ()

static void read_uncompressed (std::istream &, mnt4_G2 &)

static void read_compressed (std::istream &, mnt4_G2 &)

static void batch_to_special_all_non_zeros (std::vector< mnt4_G2 > &vec)


Public Attributes

mnt4_Fq2 X

mnt4_Fq2 Y

mnt4_Fq2 Z


Static Public Attributes

static std::vector< size_t > wnaf_window_table

static std::vector< size_t > fixed_base_exp_window_table

static mnt4_G2 G2_zero

static mnt4_G2 G2_one

static mnt4_Fq2 twist

static mnt4_Fq2 coeff_a

static mnt4_Fq2 coeff_b

static const mp_size_t h_bitcount = 298

static const mp_size_t h_limbs

static bigint< h_limbsh


Detailed Description

Definition at line 26 of file mnt4_g2.hpp.

Member Typedef Documentation

◆ base_field

Definition at line 41 of file mnt4_g2.hpp.

◆ scalar_field

Definition at line 43 of file mnt4_g2.hpp.

◆ twist_field

Definition at line 42 of file mnt4_g2.hpp.

Constructor & Destructor Documentation

◆ mnt4_G2() [1/2]

libff::mnt4_G2::mnt4_G2 ( )

Definition at line 47 of file mnt4_g2.cpp.

48 {
49  this->X = G2_zero.X;
50  this->Y = G2_zero.Y;
51  this->Z = G2_zero.Z;
52 }

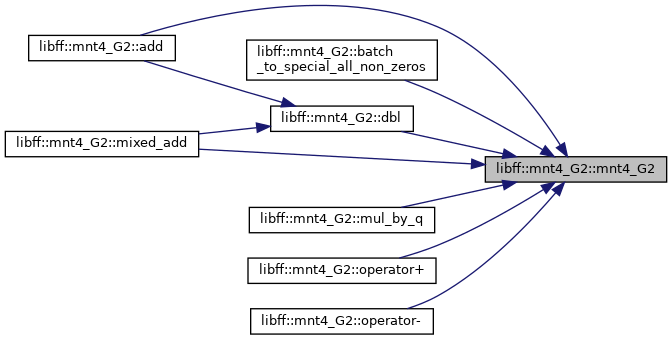

Here is the caller graph for this function:

◆ mnt4_G2() [2/2]

libff::mnt4_G2::mnt4_G2 ( const mnt4_Fq2 X,
const mnt4_Fq2 Y,
const mnt4_Fq2 Z
)
inline

Definition at line 55 of file mnt4_g2.hpp.

56  : X(X), Y(Y), Z(Z){};

Member Function Documentation

◆ add()

mnt4_G2 libff::mnt4_G2::add ( const mnt4_G2 other) const

Definition at line 262 of file mnt4_g2.cpp.

263 {
264  // handle special cases having to do with O
265  if (this->is_zero()) {
266  return other;
267  }
268
269  if (other.is_zero()) {
270  return (*this);
271  }
272
273  // no need to handle points of order 2,4
274  // (they cannot exist in a prime-order subgroup)
275
276  // handle double case
277  if (this->operator==(other)) {
278  return this->dbl();
279  }
280
281 #ifdef PROFILE_OP_COUNTS
282  this->add_cnt++;
283 #endif
284  // NOTE: does not handle O and pts of order 2,4
285  // http://www.hyperelliptic.org/EFD/g1p/auto-shortw-projective.html#addition-add-1998-cmo-2
286
287  // Y1Z2 = Y1*Z2
288  const mnt4_Fq2 Y1Z2 = (this->Y) * (other.Z);
289  // X1Z2 = X1*Z2
290  const mnt4_Fq2 X1Z2 = (this->X) * (other.Z);
291  // Z1Z2 = Z1*Z2
292  const mnt4_Fq2 Z1Z2 = (this->Z) * (other.Z);
293  // u = Y2*Z1-Y1Z2
294  const mnt4_Fq2 u = (other.Y) * (this->Z) - Y1Z2;
295  // uu = u^2
296  const mnt4_Fq2 uu = u.squared();
297  // v = X2*Z1-X1Z2
298  const mnt4_Fq2 v = (other.X) * (this->Z) - X1Z2;
299  // vv = v^2
300  const mnt4_Fq2 vv = v.squared();
301  // vvv = v*vv
302  const mnt4_Fq2 vvv = v * vv;
303  // R = vv*X1Z2
304  const mnt4_Fq2 R = vv * X1Z2;
305  // A = uu*Z1Z2 - vvv - 2*R
306  const mnt4_Fq2 A = uu * Z1Z2 - (vvv + R + R);
307  // X3 = v*A
308  const mnt4_Fq2 X3 = v * A;
309  // Y3 = u*(R-A) - vvv*Y1Z2
310  const mnt4_Fq2 Y3 = u * (R - A) - vvv * Y1Z2;
311  // Z3 = vvv*Z1Z2
312  const mnt4_Fq2 Z3 = vvv * Z1Z2;
313
314  return mnt4_G2(X3, Y3, Z3);
315 }

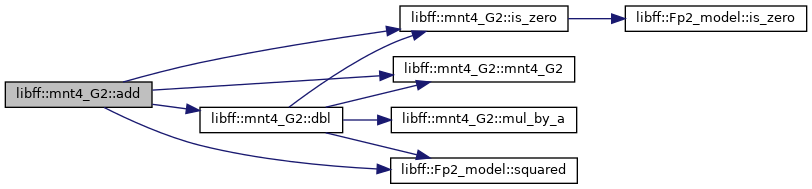

Here is the call graph for this function:

◆ base_field_char()

static bigint<mnt4_Fq::num_limbs> libff::mnt4_G2::base_field_char ( )
inlinestatic

Definition at line 91 of file mnt4_g2.hpp.

92  {
93  return mnt4_Fq::field_char();
94  }
Here is the call graph for this function:

◆ batch_to_special_all_non_zeros()

void libff::mnt4_G2::batch_to_special_all_non_zeros ( std::vector< mnt4_G2 > &  vec)
static

Definition at line 541 of file mnt4_g2.cpp.

542 {
543  std::vector<mnt4_Fq2> Z_vec;
544  Z_vec.reserve(vec.size());
545
546  for (auto &el : vec) {
547  Z_vec.emplace_back(el.Z);
548  }
549  batch_invert<mnt4_Fq2>(Z_vec);
550
551  const mnt4_Fq2 one = mnt4_Fq2::one();
552
553  for (size_t i = 0; i < vec.size(); ++i) {
554  vec[i] = mnt4_G2(vec[i].X * Z_vec[i], vec[i].Y * Z_vec[i], one);
555  }
556 }

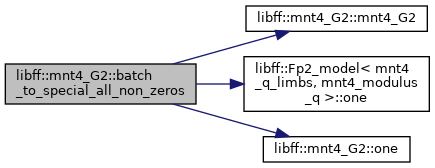

Here is the call graph for this function:

◆ dbl()

mnt4_G2 libff::mnt4_G2::dbl ( ) const

Definition at line 378 of file mnt4_g2.cpp.

379 {
380 #ifdef PROFILE_OP_COUNTS
381  this->dbl_cnt++;
382 #endif
383  if (this->is_zero()) {
384  return (*this);
385  } else {
386  // NOTE: does not handle O and pts of order 2,4
387  // http://www.hyperelliptic.org/EFD/g1p/auto-shortw-projective.html#doubling-dbl-2007-bl
388
389  // XX = X1^2
390  const mnt4_Fq2 XX = (this->X).squared();
391  // ZZ = Z1^2
392  const mnt4_Fq2 ZZ = (this->Z).squared();
393  // w = a*ZZ + 3*XX
394  const mnt4_Fq2 w = mnt4_G2::mul_by_a(ZZ) + (XX + XX + XX);
395  const mnt4_Fq2 Y1Z1 = (this->Y) * (this->Z);
396  // s = 2*Y1*Z1
397  const mnt4_Fq2 s = Y1Z1 + Y1Z1;
398  // ss = s^2
399  const mnt4_Fq2 ss = s.squared();
400  // sss = s*ss
401  const mnt4_Fq2 sss = s * ss;
402  // R = Y1*s
403  const mnt4_Fq2 R = (this->Y) * s;
404  // RR = R^2
405  const mnt4_Fq2 RR = R.squared();
406  // B = (X1+R)^2 - XX - RR
407  const mnt4_Fq2 B = ((this->X) + R).squared() - XX - RR;
408  // h = w^2-2*B
409  const mnt4_Fq2 h = w.squared() - (B + B);
410  // X3 = h*s
411  const mnt4_Fq2 X3 = h * s;
412  // Y3 = w*(B-h) - 2*RR
413  const mnt4_Fq2 Y3 = w * (B - h) - (RR + RR);
414  // Z3 = sss
415  const mnt4_Fq2 Z3 = sss;
416
417  return mnt4_G2(X3, Y3, Z3);
418  }
419 }

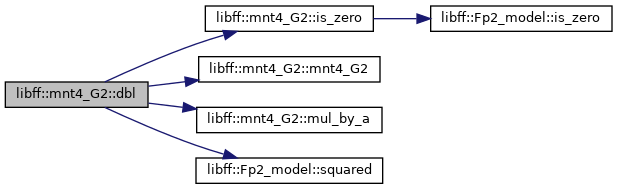

Here is the call graph for this function:
Here is the caller graph for this function:

◆ is_in_safe_subgroup()

bool libff::mnt4_G2::is_in_safe_subgroup ( ) const

Definition at line 454 of file mnt4_g2.cpp.

455 {
456  return zero() == scalar_field::mod * (*this);
457 }
Here is the call graph for this function:

◆ is_special()

bool libff::mnt4_G2::is_special ( ) const

Definition at line 112 of file mnt4_g2.cpp.

113 {
114  return (this->is_zero() || this->Z == mnt4_Fq2::one());
115 }

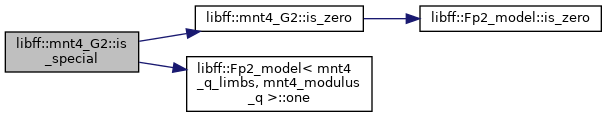

Here is the call graph for this function:
Here is the caller graph for this function:

◆ is_well_formed()

bool libff::mnt4_G2::is_well_formed ( ) const

Definition at line 431 of file mnt4_g2.cpp.

432 {
433  if (this->is_zero()) {
434  return true;
435  } else {
436  // y^2 = x^3 + ax + b
437  //
438  // We are using projective, so equation we need to check is actually
439  //
440  // (y/z)^2 = (x/z)^3 + a (x/z) + b
441  // z y^2 = x^3 + a z^2 x + b z^3
442  //
443  // z (y^2 - b z^2) = x ( x^2 + a z^2)
444  const mnt4_Fq2 X2 = this->X.squared();
445  const mnt4_Fq2 Y2 = this->Y.squared();
446  const mnt4_Fq2 Z2 = this->Z.squared();
447  const mnt4_Fq2 aZ2 = mnt4_twist_coeff_a * Z2;
448
449  return (
450  this->Z * (Y2 - mnt4_twist_coeff_b * Z2) == this->X * (X2 + aZ2));
451  }
452 }
Here is the call graph for this function:

◆ is_zero()

bool libff::mnt4_G2::is_zero ( ) const

Definition at line 117 of file mnt4_g2.cpp.

118 {
119  return (this->X.is_zero() && this->Z.is_zero());
120 }
Here is the call graph for this function:

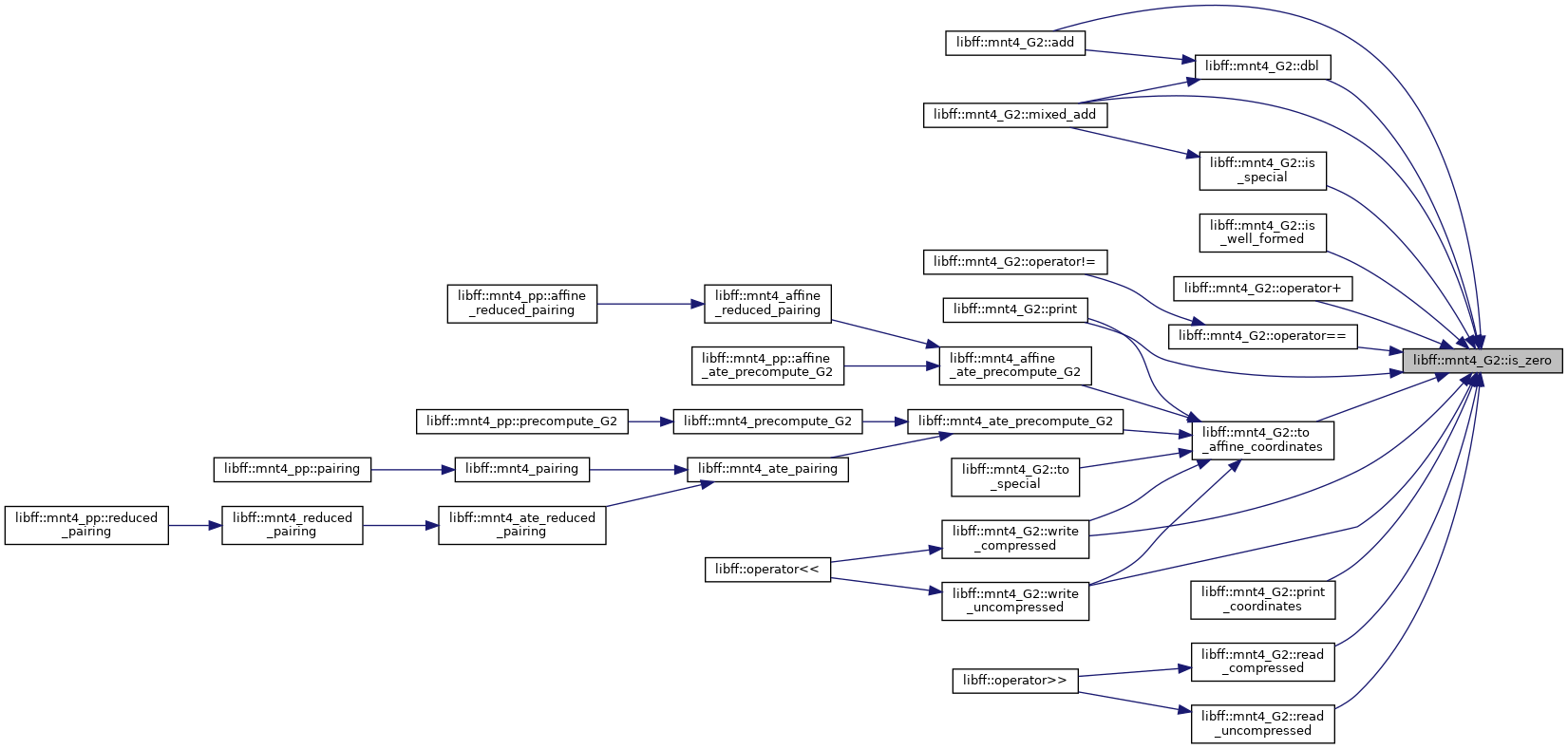

Here is the caller graph for this function:

◆ mixed_add()

mnt4_G2 libff::mnt4_G2::mixed_add ( const mnt4_G2 other) const

Definition at line 317 of file mnt4_g2.cpp.

318 {
319 #ifdef PROFILE_OP_COUNTS
320  this->add_cnt++;
321 #endif
322  // NOTE: does not handle O and pts of order 2,4
323  // http://www.hyperelliptic.org/EFD/g1p/auto-shortw-projective.html#addition-add-1998-cmo-2
324  // assert(other.Z == mnt4_Fq2::one());
325
326  if (this->is_zero()) {
327  return other;
328  }
329
330  if (other.is_zero()) {
331  return (*this);
332  }
333
334 #ifdef DEBUG
335  assert(other.is_special());
336 #endif
337
338  // X1Z2 = X1*Z2 (but other is special and not zero)
339  const mnt4_Fq2 &X1Z2 = (this->X);
340  // X2Z1 = X2*Z1
341  const mnt4_Fq2 X2Z1 = (this->Z) * (other.X);
342
343  // (used both in add and double checks)
344
345  // Y1Z2 = Y1*Z2 (but other is special and not zero)
346  const mnt4_Fq2 &Y1Z2 = (this->Y);
347  // Y2Z1 = Y2*Z1
348  const mnt4_Fq2 Y2Z1 = (this->Z) * (other.Y);
349
350  if (X1Z2 == X2Z1 && Y1Z2 == Y2Z1) {
351  return this->dbl();
352  }
353
354  // u = Y2*Z1-Y1
355  const mnt4_Fq2 u = Y2Z1 - this->Y;
356  // uu = u2
357  const mnt4_Fq2 uu = u.squared();
358  // v = X2*Z1-X1
359  const mnt4_Fq2 v = X2Z1 - this->X;
360  // vv = v2
361  const mnt4_Fq2 vv = v.squared();
362  // vvv = v*vv
363  const mnt4_Fq2 vvv = v * vv;
364  // R = vv*X1
365  const mnt4_Fq2 R = vv * this->X;
366  // A = uu*Z1-vvv-2*R
367  const mnt4_Fq2 A = uu * this->Z - vvv - R - R;
368  // X3 = v*A
369  const mnt4_Fq2 X3 = v * A;
370  // Y3 = u*(R-A)-vvv*Y1
371  const mnt4_Fq2 Y3 = u * (R - A) - vvv * this->Y;
372  // Z3 = vvv*Z1
373  const mnt4_Fq2 Z3 = vvv * this->Z;
374
375  return mnt4_G2(X3, Y3, Z3);
376 }

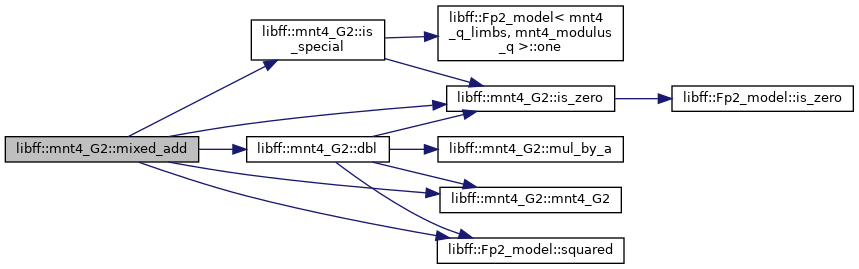

Here is the call graph for this function:

◆ mul_by_a()

mnt4_Fq2 libff::mnt4_G2::mul_by_a ( const mnt4_Fq2 elt)
static

Definition at line 33 of file mnt4_g2.cpp.

34 {
35  return mnt4_Fq2(
36  mnt4_twist_mul_by_a_c0 * elt.coeffs[0],
37  mnt4_twist_mul_by_a_c1 * elt.coeffs[1]);
38 }

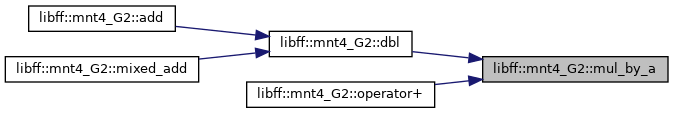

Here is the caller graph for this function:

◆ mul_by_b()

mnt4_Fq2 libff::mnt4_G2::mul_by_b ( const mnt4_Fq2 elt)
static

Definition at line 40 of file mnt4_g2.cpp.

41 {
42  return mnt4_Fq2(
43  mnt4_twist_mul_by_b_c0 * elt.coeffs[1],
44  mnt4_twist_mul_by_b_c1 * elt.coeffs[0]);
45 }

◆ mul_by_cofactor()

mnt4_G2 libff::mnt4_G2::mul_by_cofactor ( ) const

Definition at line 429 of file mnt4_g2.cpp.

429 { return mnt4_G2::h * (*this); }

◆ mul_by_q()

mnt4_G2 libff::mnt4_G2::mul_by_q ( ) const

Definition at line 421 of file mnt4_g2.cpp.

422 {
423  return mnt4_G2(
424  mnt4_twist_mul_by_q_X * (this->X).Frobenius_map(1),
425  mnt4_twist_mul_by_q_Y * (this->Y).Frobenius_map(1),
426  (this->Z).Frobenius_map(1));
427 }
Here is the call graph for this function:

◆ one()

const mnt4_G2 & libff::mnt4_G2::one ( )
static

Definition at line 461 of file mnt4_g2.cpp.

461 { return G2_one; }
Here is the caller graph for this function:

◆ operator!=()

bool libff::mnt4_G2::operator!= ( const mnt4_G2 other) const

Definition at line 147 of file mnt4_g2.cpp.

148 {
149  return !(operator==(other));
150 }
Here is the call graph for this function:

◆ operator+()

mnt4_G2 libff::mnt4_G2::operator+ ( const mnt4_G2 other) const

Definition at line 152 of file mnt4_g2.cpp.

153 {
154  // handle special cases having to do with O
155  if (this->is_zero()) {
156  return other;
157  }
158
159  if (other.is_zero()) {
160  return *this;
161  }
162
163  // no need to handle points of order 2,4
164  // (they cannot exist in a prime-order subgroup)
165
166  // handle double case, and then all the rest
167  /*
168  The code below is equivalent to (but faster than) the snippet below:
169
170  if (this->operator==(other))
171  {
172  return this->dbl();
173  }
174  else
175  {
176  return this->add(other);
177  }
178  */
179
180  // X1Z2 = X1*Z2
181  const mnt4_Fq2 X1Z2 = (this->X) * (other.Z);
182  // X2Z1 = X2*Z1
183  const mnt4_Fq2 X2Z1 = (this->Z) * (other.X);
184
185  // (used both in add and double checks)
186
187  // Y1Z2 = Y1*Z2
188  const mnt4_Fq2 Y1Z2 = (this->Y) * (other.Z);
189  // Y2Z1 = Y2*Z1
190  const mnt4_Fq2 Y2Z1 = (this->Z) * (other.Y);
191
192  if (X1Z2 == X2Z1 && Y1Z2 == Y2Z1) {
193  // perform dbl case
194  // XX = X1^2
195  const mnt4_Fq2 XX = (this->X).squared();
196  // ZZ = Z1^2
197  const mnt4_Fq2 ZZ = (this->Z).squared();
198  // w = a*ZZ + 3*XX
199  const mnt4_Fq2 w = mnt4_G2::mul_by_a(ZZ) + (XX + XX + XX);
200  const mnt4_Fq2 Y1Z1 = (this->Y) * (this->Z);
201  // s = 2*Y1*Z1
202  const mnt4_Fq2 s = Y1Z1 + Y1Z1;
203  // ss = s^2
204  const mnt4_Fq2 ss = s.squared();
205  // sss = s*ss
206  const mnt4_Fq2 sss = s * ss;
207  // R = Y1*s
208  const mnt4_Fq2 R = (this->Y) * s;
209  // RR = R^2
210  const mnt4_Fq2 RR = R.squared();
211  // B = (X1+R)^2 - XX - RR
212  const mnt4_Fq2 B = ((this->X) + R).squared() - XX - RR;
213  // h = w^2 - 2*B
214  const mnt4_Fq2 h = w.squared() - (B + B);
215  // X3 = h*s
216  const mnt4_Fq2 X3 = h * s;
217  // Y3 = w*(B-h) - 2*RR
218  const mnt4_Fq2 Y3 = w * (B - h) - (RR + RR);
219  // Z3 = sss
220  const mnt4_Fq2 Z3 = sss;
221
222  return mnt4_G2(X3, Y3, Z3);
223  }
224
225  // if we have arrived here we are in the add case
226  // Z1Z2 = Z1*Z2
227  const mnt4_Fq2 Z1Z2 = (this->Z) * (other.Z);
228  // u = Y2*Z1-Y1Z2
229  const mnt4_Fq2 u = Y2Z1 - Y1Z2;
230  // uu = u^2
231  const mnt4_Fq2 uu = u.squared();
232  // v = X2*Z1-X1Z2
233  const mnt4_Fq2 v = X2Z1 - X1Z2;
234  // vv = v^2
235  const mnt4_Fq2 vv = v.squared();
236  // vvv = v*vv
237  const mnt4_Fq2 vvv = v * vv;
238  // R = vv*X1Z2
239  const mnt4_Fq2 R = vv * X1Z2;
240  // A = uu*Z1Z2 - vvv - 2*R
241  const mnt4_Fq2 A = uu * Z1Z2 - (vvv + R + R);
242  // X3 = v*A
243  const mnt4_Fq2 X3 = v * A;
244  // Y3 = u*(R-A) - vvv*Y1Z2
245  const mnt4_Fq2 Y3 = u * (R - A) - vvv * Y1Z2;
246  // Z3 = vvv*Z1Z2
247  const mnt4_Fq2 Z3 = vvv * Z1Z2;
248
249  return mnt4_G2(X3, Y3, Z3);
250 }

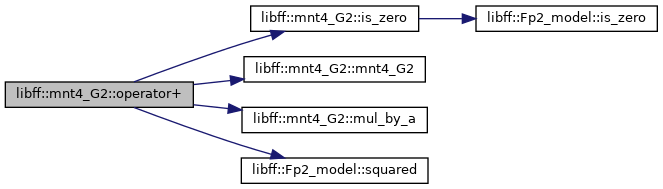

Here is the call graph for this function:

◆ operator-() [1/2]

mnt4_G2 libff::mnt4_G2::operator- ( ) const

Definition at line 252 of file mnt4_g2.cpp.

253 {
254  return mnt4_G2(this->X, -(this->Y), this->Z);
255 }
Here is the call graph for this function:

◆ operator-() [2/2]

mnt4_G2 libff::mnt4_G2::operator- ( const mnt4_G2 other) const

Definition at line 257 of file mnt4_g2.cpp.

258 {
259  return (*this) + (-other);
260 }

◆ operator==()

bool libff::mnt4_G2::operator== ( const mnt4_G2 other) const

Definition at line 122 of file mnt4_g2.cpp.

123 {
124  if (this->is_zero()) {
125  return other.is_zero();
126  }
127
128  if (other.is_zero()) {
129  return false;
130  }
131
132  /* now neither is O */
133
134  // X1/Z1 = X2/Z2 <=> X1*Z2 = X2*Z1
135  if ((this->X * other.Z) != (other.X * this->Z)) {
136  return false;
137  }
138
139  // Y1/Z1 = Y2/Z2 <=> Y1*Z2 = Y2*Z1
140  if ((this->Y * other.Z) != (other.Y * this->Z)) {
141  return false;
142  }
143
144  return true;
145 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ order()

static bigint<mnt4_Fr::num_limbs> libff::mnt4_G2::order ( )
inlinestatic

Definition at line 95 of file mnt4_g2.hpp.

95 { return mnt4_Fr::field_char(); }
Here is the call graph for this function:

◆ print()

void libff::mnt4_G2::print ( ) const

Definition at line 54 of file mnt4_g2.cpp.

55 {
56  if (this->is_zero()) {
57  printf("O\n");
58  } else {
59  mnt4_G2 copy(*this);
60  copy.to_affine_coordinates();
61  gmp_printf(
62  "(%Nd*z + %Nd , %Nd*z + %Nd)\n",
63  copy.X.coeffs[1].as_bigint().data,
65  copy.X.coeffs[0].as_bigint().data,
67  copy.Y.coeffs[1].as_bigint().data,
69  copy.Y.coeffs[0].as_bigint().data,
71  }
72 }

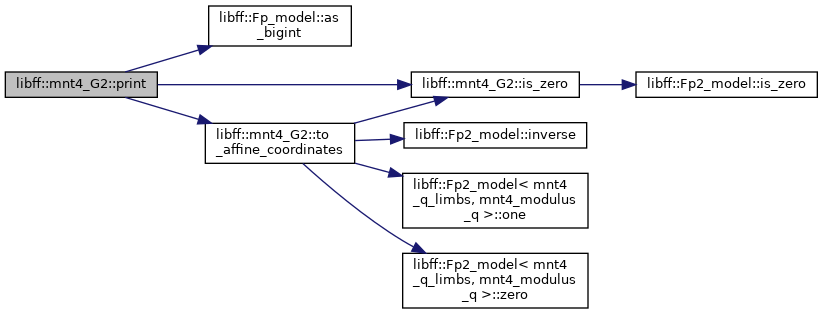

Here is the call graph for this function:

◆ print_coordinates()

void libff::mnt4_G2::print_coordinates ( ) const

Definition at line 74 of file mnt4_g2.cpp.

75 {
76  if (this->is_zero()) {
77  printf("O\n");
78  } else {
79  gmp_printf(
80  "(%Nd*z + %Nd : %Nd*z + %Nd : %Nd*z + %Nd)\n",
81  this->X.coeffs[1].as_bigint().data,
83  this->X.coeffs[0].as_bigint().data,
85  this->Y.coeffs[1].as_bigint().data,
87  this->Y.coeffs[0].as_bigint().data,
89  this->Z.coeffs[1].as_bigint().data,
91  this->Z.coeffs[0].as_bigint().data,
93  }
94 }

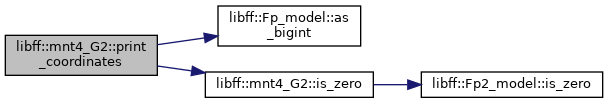

Here is the call graph for this function:

◆ random_element()

mnt4_G2 libff::mnt4_G2::random_element ( )
static

Definition at line 463 of file mnt4_g2.cpp.

464 {
465  return (mnt4_Fr::random_element().as_bigint()) * G2_one;
466 }
Here is the call graph for this function:

◆ read_compressed()

void libff::mnt4_G2::read_compressed ( std::istream &  in,
mnt4_G2 g
)
static

Definition at line 505 of file mnt4_g2.cpp.

506 {
507  char is_zero;
508  mnt4_Fq2 tX, tY;
509  // this reads is_zero;
510  in.read((char *)&is_zero, 1);
511  is_zero -= '0';
513
514  unsigned char Y_lsb;
515  in >> tX;
517  in.read((char *)&Y_lsb, 1);
518  Y_lsb -= '0';
519
520  // y = +/- sqrt(x^3 + a*x + b)
521  if (!is_zero) {
522  mnt4_Fq2 tX2 = tX.squared();
523  mnt4_Fq2 tY2 = (tX2 + mnt4_twist_coeff_a) * tX + mnt4_twist_coeff_b;
524  tY = tY2.sqrt();
525
526  if ((tY.coeffs[0].as_bigint().data[0] & 1) != Y_lsb) {
527  tY = -tY;
528  }
529  }
530
531  // using projective coordinates
532  if (!is_zero) {
533  g.X = tX;
534  g.Y = tY;
535  g.Z = mnt4_Fq2::one();
536  } else {
537  g = mnt4_G2::zero();
538  }
539 }

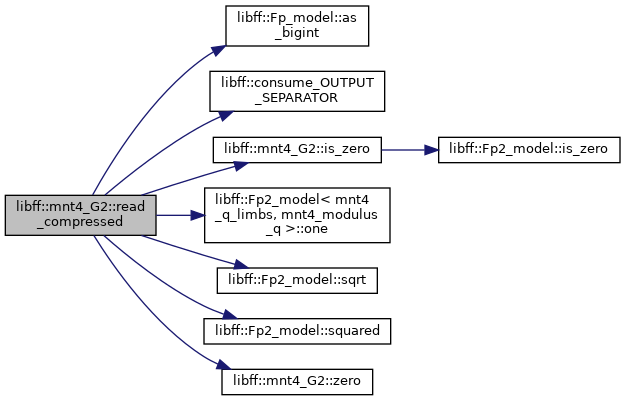

Here is the call graph for this function:
Here is the caller graph for this function:

◆ read_uncompressed()

void libff::mnt4_G2::read_uncompressed ( std::istream &  in,
mnt4_G2 g
)
static

Definition at line 488 of file mnt4_g2.cpp.

489 {
490  char is_zero;
491  mnt4_Fq2 tX, tY;
492  in >> is_zero >> tX >> tY;
493  is_zero -= '0';
494
495  // using projective coordinates
496  if (!is_zero) {
497  g.X = tX;
498  g.Y = tY;
499  g.Z = mnt4_Fq2::one();
500  } else {
501  g = mnt4_G2::zero();
502  }
503 }

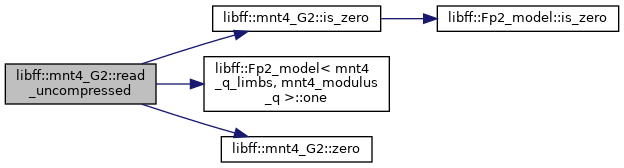

Here is the call graph for this function:
Here is the caller graph for this function:

◆ size_in_bits()

static size_t libff::mnt4_G2::size_in_bits ( )
inlinestatic

Definition at line 90 of file mnt4_g2.hpp.

90 { return mnt4_Fq2::size_in_bits() + 1; }
Here is the call graph for this function:

◆ to_affine_coordinates()

void libff::mnt4_G2::to_affine_coordinates ( )

Definition at line 96 of file mnt4_g2.cpp.

97 {
98  if (this->is_zero()) {
99  this->X = mnt4_Fq2::zero();
100  this->Y = mnt4_Fq2::one();
101  this->Z = mnt4_Fq2::zero();
102  } else {
103  const mnt4_Fq2 Z_inv = Z.inverse();
104  X = X * Z_inv;
105  Y = Y * Z_inv;
106  Z = mnt4_Fq2::one();
107  }
108 }

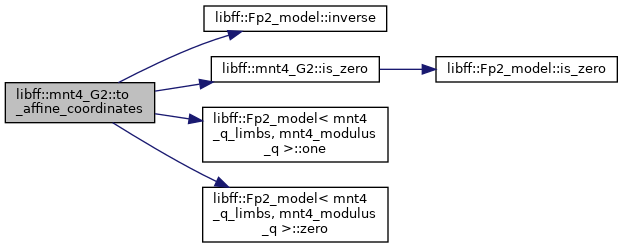

Here is the call graph for this function:

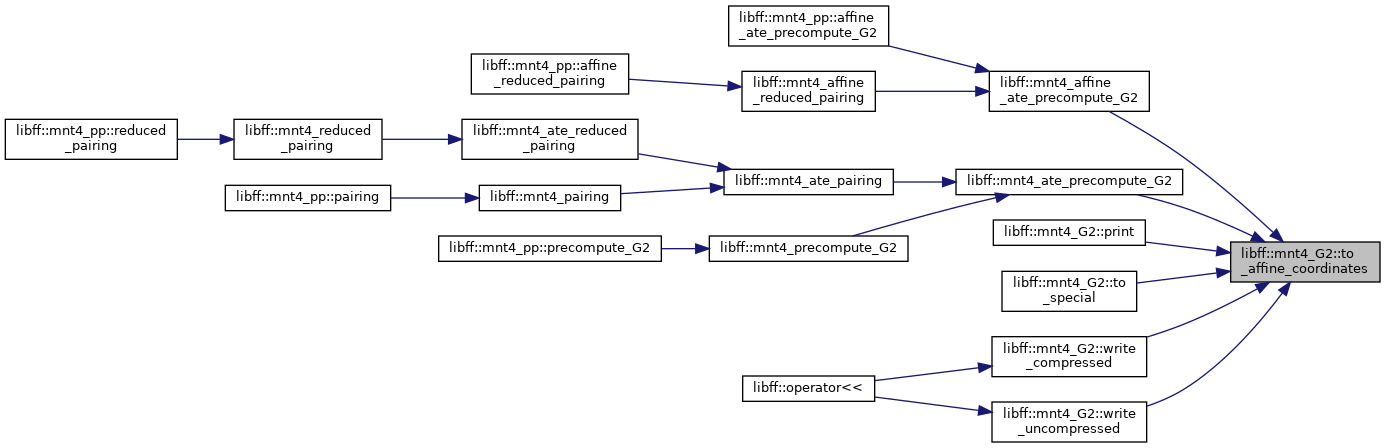

Here is the caller graph for this function:

◆ to_special()

void libff::mnt4_G2::to_special ( )

Definition at line 110 of file mnt4_g2.cpp.

110 { this->to_affine_coordinates(); }

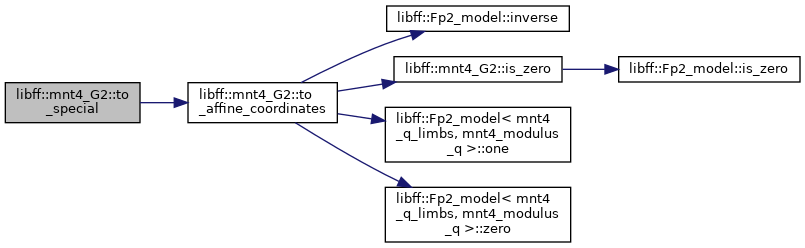

Here is the call graph for this function:

◆ write_compressed()

void libff::mnt4_G2::write_compressed ( std::ostream &  out) const

Definition at line 477 of file mnt4_g2.cpp.

478 {
479  mnt4_G2 copy(*this);
480  copy.to_affine_coordinates();
481
482  out << (copy.is_zero() ? 1 : 0) << OUTPUT_SEPARATOR;
483  /* storing LSB of Y */
484  out << copy.X << OUTPUT_SEPARATOR
485  << (copy.Y.coeffs[0].as_bigint().data[0] & 1);
486 }

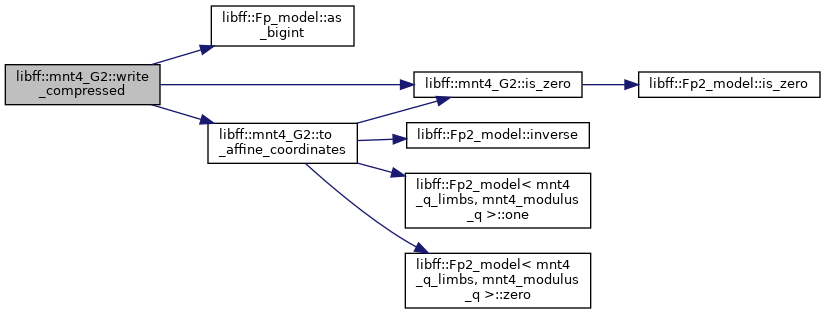

Here is the call graph for this function:
Here is the caller graph for this function:

◆ write_uncompressed()

void libff::mnt4_G2::write_uncompressed ( std::ostream &  out) const

Definition at line 468 of file mnt4_g2.cpp.

469 {
470  mnt4_G2 copy(*this);
471  copy.to_affine_coordinates();
472
473  out << (copy.is_zero() ? 1 : 0) << OUTPUT_SEPARATOR;
474  out << copy.X << OUTPUT_SEPARATOR << copy.Y;
475 }

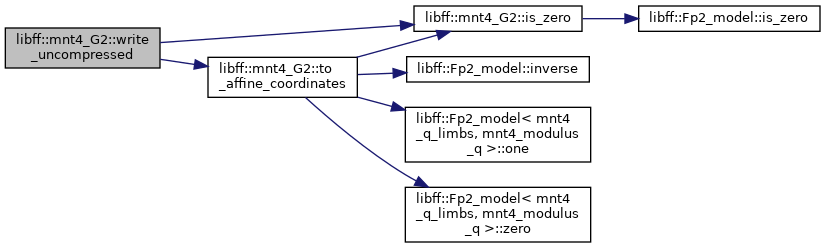

Here is the call graph for this function:
Here is the caller graph for this function:

◆ zero()

const mnt4_G2 & libff::mnt4_G2::zero ( )
static

Definition at line 459 of file mnt4_g2.cpp.

459 { return G2_zero; }

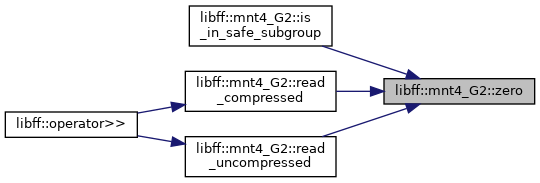

Here is the caller graph for this function:

Member Data Documentation

◆ coeff_a

mnt4_Fq2 libff::mnt4_G2::coeff_a
static

Definition at line 38 of file mnt4_g2.hpp.

◆ coeff_b

mnt4_Fq2 libff::mnt4_G2::coeff_b
static

Definition at line 39 of file mnt4_g2.hpp.

◆ fixed_base_exp_window_table

std::vector< size_t > libff::mnt4_G2::fixed_base_exp_window_table
static

Definition at line 34 of file mnt4_g2.hpp.

◆ G2_one

mnt4_G2 libff::mnt4_G2::G2_one
static

Definition at line 36 of file mnt4_g2.hpp.

◆ G2_zero

mnt4_G2 libff::mnt4_G2::G2_zero
static

Definition at line 35 of file mnt4_g2.hpp.

◆ h

bigint< mnt4_G2::h_limbs > libff::mnt4_G2::h
static

Definition at line 49 of file mnt4_g2.hpp.

◆ h_bitcount

const mp_size_t libff::mnt4_G2::h_bitcount = 298
static

Definition at line 46 of file mnt4_g2.hpp.

◆ h_limbs

const mp_size_t libff::mnt4_G2::h_limbs
static
Initial value:
=
(h_bitcount + GMP_NUMB_BITS - 1) / GMP_NUMB_BITS

Definition at line 47 of file mnt4_g2.hpp.

◆ twist

mnt4_Fq2 libff::mnt4_G2::twist
static

Definition at line 37 of file mnt4_g2.hpp.

◆ wnaf_window_table

std::vector< size_t > libff::mnt4_G2::wnaf_window_table
static

Definition at line 33 of file mnt4_g2.hpp.

◆ X

mnt4_Fq2 libff::mnt4_G2::X

Definition at line 51 of file mnt4_g2.hpp.

◆ Y

mnt4_Fq2 libff::mnt4_G2::Y

Definition at line 51 of file mnt4_g2.hpp.

◆ Z

mnt4_Fq2 libff::mnt4_G2::Z

Definition at line 51 of file mnt4_g2.hpp.


The documentation for this class was generated from the following files:
libff::Fp2_model::coeffs
my_Fp coeffs[2]
Definition: fp2.hpp:63
libff::mnt4_twist_mul_by_b_c1
mnt4_Fq mnt4_twist_mul_by_b_c1
Definition: mnt4_init.cpp:30
libff::mnt4_twist_coeff_b
mnt4_Fq2 mnt4_twist_coeff_b
Definition: mnt4_init.cpp:26
libff::mnt4_twist_mul_by_a_c1
mnt4_Fq mnt4_twist_mul_by_a_c1
Definition: mnt4_init.cpp:28
libff::Fp_model::random_element
static Fp_model< n, modulus > random_element()
returns random element of Fp_model
libff::mnt4_G2::h_bitcount
static const mp_size_t h_bitcount
Definition: mnt4_g2.hpp:46
libff::mnt4_G2::G2_one
static mnt4_G2 G2_one
Definition: mnt4_g2.hpp:36
libff::mnt4_G2::X
mnt4_Fq2 X
Definition: mnt4_g2.hpp:51
libff::Fp2_model< mnt4_q_limbs, mnt4_modulus_q >::one
static const Fp2_model< n, modulus > & one()
libff::mnt4_G2::h
static bigint< h_limbs > h
Definition: mnt4_g2.hpp:49
libff::Fp2_model< mnt4_q_limbs, mnt4_modulus_q >::size_in_bits
static size_t size_in_bits()
Definition: fp2.hpp:108
libff::mnt4_twist_coeff_a
mnt4_Fq2 mnt4_twist_coeff_a
Definition: mnt4_init.cpp:25
libff::mnt4_twist_mul_by_q_X
mnt4_Fq mnt4_twist_mul_by_q_X
Definition: mnt4_init.cpp:31
libff::Fp2_model::inverse
Fp2_model inverse() const
OUTPUT_SEPARATOR
#define OUTPUT_SEPARATOR
Definition: serialization.hpp:69
libff::Fp2_model::is_zero
bool is_zero() const
Definition: fp2.hpp:89
libff::mnt4_G2::to_affine_coordinates
void to_affine_coordinates()
Definition: mnt4_g2.cpp:96
libff::mnt4_G2::Z
mnt4_Fq2 Z
Definition: mnt4_g2.hpp:51
libff::mnt4_G2::mnt4_G2
mnt4_G2()
Definition: mnt4_g2.cpp:47
libff::consume_OUTPUT_SEPARATOR
void consume_OUTPUT_SEPARATOR(std::istream &in)
libff::Fp_model< mnt4_q_limbs, mnt4_modulus_q >::num_limbs
static const mp_size_t num_limbs
Definition: fp.hpp:47
libff::mnt4_G2::G2_zero
static mnt4_G2 G2_zero
Definition: mnt4_g2.hpp:35
libff::mnt4_Fq2
Fp2_model< mnt4_q_limbs, mnt4_modulus_q > mnt4_Fq2
Definition: mnt4_init.hpp:38
libff::Fp_model< mnt4_q_limbs, mnt4_modulus_q >::field_char
static const bigint< n > & field_char()
Definition: fp.hpp:136
libff::Fp_model::as_bigint
bigint< n > as_bigint() const
libff::mnt4_twist_mul_by_b_c0
mnt4_Fq mnt4_twist_mul_by_b_c0
Definition: mnt4_init.cpp:29
libff::mnt4_G2::one
static const mnt4_G2 & one()
Definition: mnt4_g2.cpp:461
libff::mnt4_twist_mul_by_q_Y
mnt4_Fq mnt4_twist_mul_by_q_Y
Definition: mnt4_init.cpp:32
libff::Fp2_model::squared
Fp2_model squared() const
default is squared_complex
libff::mnt4_G2::mul_by_a
static mnt4_Fq2 mul_by_a(const mnt4_Fq2 &elt)
Definition: mnt4_g2.cpp:33
libff::mnt4_G2::dbl
mnt4_G2 dbl() const
Definition: mnt4_g2.cpp:378
libff::mnt4_G2::Y
mnt4_Fq2 Y
Definition: mnt4_g2.hpp:51
libff::Fp_model::mod
static const constexpr bigint< n > & mod
Definition: fp.hpp:48
libff::mnt4_G2::operator==
bool operator==(const mnt4_G2 &other) const
Definition: mnt4_g2.cpp:122
libff::Fp2_model::sqrt
Fp2_model sqrt() const
HAS TO BE A SQUARE (else does not terminate)
libff::mnt4_twist_mul_by_a_c0
mnt4_Fq mnt4_twist_mul_by_a_c0
Definition: mnt4_init.cpp:27
libff::Fp2_model< mnt4_q_limbs, mnt4_modulus_q >::zero
static const Fp2_model< n, modulus > & zero()
libff::mnt4_G2::is_zero
bool is_zero() const
Definition: mnt4_g2.cpp:117
libff::mnt4_G2::zero
static const mnt4_G2 & zero()
Definition: mnt4_g2.cpp:459
