libff::mnt6_G2 Class Reference

#include <mnt6_g2.hpp>

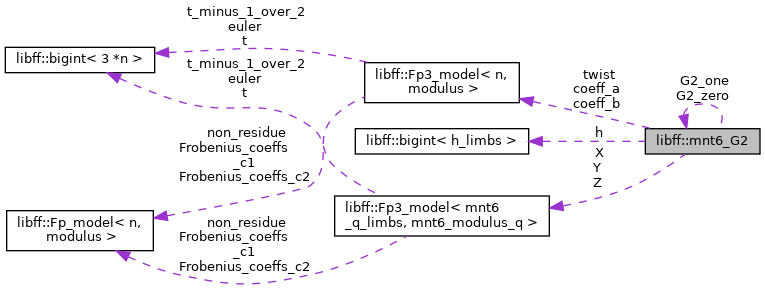

Collaboration diagram for libff::mnt6_G2:
Collaboration graph
[legend]

Public Types

typedef mnt6_Fq base_field

typedef mnt6_Fq3 twist_field

typedef mnt6_Fr scalar_field


Public Member Functions

 mnt6_G2 ()

 mnt6_G2 (const mnt6_Fq3 &X, const mnt6_Fq3 &Y, const mnt6_Fq3 &Z)

void print () const

void print_coordinates () const

void to_affine_coordinates ()

void to_special ()

bool is_special () const

bool is_zero () const

bool operator== (const mnt6_G2 &other) const

bool operator!= (const mnt6_G2 &other) const

mnt6_G2 operator+ (const mnt6_G2 &other) const

mnt6_G2 operator- () const

mnt6_G2 operator- (const mnt6_G2 &other) const

mnt6_G2 add (const mnt6_G2 &other) const

mnt6_G2 mixed_add (const mnt6_G2 &other) const

mnt6_G2 dbl () const

mnt6_G2 mul_by_q () const

mnt6_G2 mul_by_cofactor () const

bool is_well_formed () const

bool is_in_safe_subgroup () const

void write_uncompressed (std::ostream &) const

void write_compressed (std::ostream &) const


Static Public Member Functions

static mnt6_Fq3 mul_by_a (const mnt6_Fq3 &elt)

static mnt6_Fq3 mul_by_b (const mnt6_Fq3 &elt)

static const mnt6_G2zero ()

static const mnt6_G2one ()

static mnt6_G2 random_element ()

static size_t size_in_bits ()

static bigint< base_field::num_limbsbase_field_char ()

static bigint< scalar_field::num_limbsorder ()

static void read_uncompressed (std::istream &, mnt6_G2 &)

static void read_compressed (std::istream &, mnt6_G2 &)

static void batch_to_special_all_non_zeros (std::vector< mnt6_G2 > &vec)


Public Attributes

mnt6_Fq3 X

mnt6_Fq3 Y

mnt6_Fq3 Z


Static Public Attributes

static std::vector< size_t > wnaf_window_table

static std::vector< size_t > fixed_base_exp_window_table

static mnt6_G2 G2_zero

static mnt6_G2 G2_one

static mnt6_Fq3 twist

static mnt6_Fq3 coeff_a

static mnt6_Fq3 coeff_b

static const mp_size_t h_bitcount = 596

static const mp_size_t h_limbs

static bigint< h_limbsh


Detailed Description

Definition at line 26 of file mnt6_g2.hpp.

Member Typedef Documentation

◆ base_field

Definition at line 41 of file mnt6_g2.hpp.

◆ scalar_field

Definition at line 43 of file mnt6_g2.hpp.

◆ twist_field

Definition at line 42 of file mnt6_g2.hpp.

Constructor & Destructor Documentation

◆ mnt6_G2() [1/2]

libff::mnt6_G2::mnt6_G2 ( )

Definition at line 33 of file mnt6_g2.cpp.

34 {
35  this->X = G2_zero.X;
36  this->Y = G2_zero.Y;
37  this->Z = G2_zero.Z;
38 }

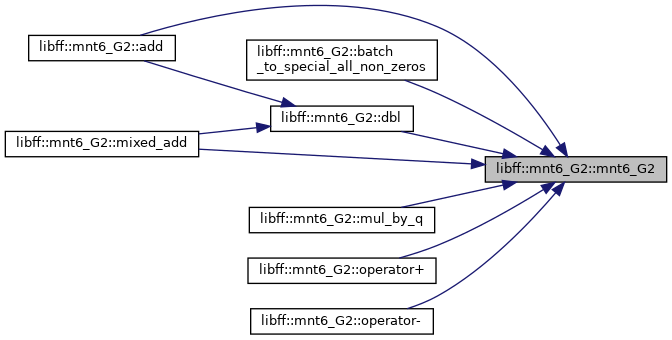

Here is the caller graph for this function:

◆ mnt6_G2() [2/2]

libff::mnt6_G2::mnt6_G2 ( const mnt6_Fq3 X,
const mnt6_Fq3 Y,
const mnt6_Fq3 Z
)
inline

Definition at line 55 of file mnt6_g2.hpp.

56  : X(X), Y(Y), Z(Z)
57  {
58  }

Member Function Documentation

◆ add()

mnt6_G2 libff::mnt6_G2::add ( const mnt6_G2 other) const

Definition at line 275 of file mnt6_g2.cpp.

276 {
277  // handle special cases having to do with O
278  if (this->is_zero()) {
279  return other;
280  }
281
282  if (other.is_zero()) {
283  return (*this);
284  }
285
286  // no need to handle points of order 2,4
287  // (they cannot exist in a prime-order subgroup)
288
289  // handle double case
290  if (this->operator==(other)) {
291  return this->dbl();
292  }
293
294 #ifdef PROFILE_OP_COUNTS
295  this->add_cnt++;
296 #endif
297  // NOTE: does not handle O and pts of order 2,4
298  // http://www.hyperelliptic.org/EFD/g1p/auto-shortw-projective.html#addition-add-1998-cmo-2
299
300  // Y1Z2 = Y1*Z2
301  const mnt6_Fq3 Y1Z2 = (this->Y) * (other.Z);
302  // X1Z2 = X1*Z2
303  const mnt6_Fq3 X1Z2 = (this->X) * (other.Z);
304  // Z1Z2 = Z1*Z2
305  const mnt6_Fq3 Z1Z2 = (this->Z) * (other.Z);
306  // u = Y2*Z1-Y1Z2
307  const mnt6_Fq3 u = (other.Y) * (this->Z) - Y1Z2;
308  // uu = u^2
309  const mnt6_Fq3 uu = u.squared();
310  // v = X2*Z1-X1Z2
311  const mnt6_Fq3 v = (other.X) * (this->Z) - X1Z2;
312  // vv = v^2
313  const mnt6_Fq3 vv = v.squared();
314  // vvv = v*vv
315  const mnt6_Fq3 vvv = v * vv;
316  // R = vv*X1Z2
317  const mnt6_Fq3 R = vv * X1Z2;
318  // A = uu*Z1Z2 - vvv - 2*R
319  const mnt6_Fq3 A = uu * Z1Z2 - (vvv + R + R);
320  // X3 = v*A
321  const mnt6_Fq3 X3 = v * A;
322  // Y3 = u*(R-A) - vvv*Y1Z2
323  const mnt6_Fq3 Y3 = u * (R - A) - vvv * Y1Z2;
324  // Z3 = vvv*Z1Z2
325  const mnt6_Fq3 Z3 = vvv * Z1Z2;
326
327  return mnt6_G2(X3, Y3, Z3);
328 }

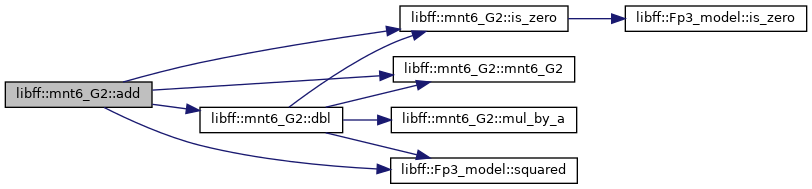

Here is the call graph for this function:

◆ base_field_char()

static bigint<base_field::num_limbs> libff::mnt6_G2::base_field_char ( )
inlinestatic

Definition at line 93 of file mnt6_g2.hpp.

94  {
95  return base_field::field_char();
96  }
Here is the call graph for this function:

◆ batch_to_special_all_non_zeros()

void libff::mnt6_G2::batch_to_special_all_non_zeros ( std::vector< mnt6_G2 > &  vec)
static

Definition at line 558 of file mnt6_g2.cpp.

559 {
560  std::vector<mnt6_Fq3> Z_vec;
561  Z_vec.reserve(vec.size());
562
563  for (auto &el : vec) {
564  Z_vec.emplace_back(el.Z);
565  }
566  batch_invert<mnt6_Fq3>(Z_vec);
567
568  const mnt6_Fq3 one = mnt6_Fq3::one();
569
570  for (size_t i = 0; i < vec.size(); ++i) {
571  vec[i] = mnt6_G2(vec[i].X * Z_vec[i], vec[i].Y * Z_vec[i], one);
572  }
573 }

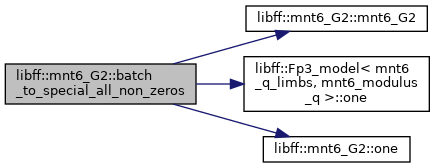

Here is the call graph for this function:

◆ dbl()

mnt6_G2 libff::mnt6_G2::dbl ( ) const

Definition at line 391 of file mnt6_g2.cpp.

392 {
393 #ifdef PROFILE_OP_COUNTS
394  this->dbl_cnt++;
395 #endif
396  if (this->is_zero()) {
397  return (*this);
398  } else {
399  // NOTE: does not handle O and pts of order 2,4
400  // http://www.hyperelliptic.org/EFD/g1p/auto-shortw-projective.html#doubling-dbl-2007-bl
401
402  // XX = X1^2
403  const mnt6_Fq3 XX = (this->X).squared();
404  // ZZ = Z1^2
405  const mnt6_Fq3 ZZ = (this->Z).squared();
406  // w = a*ZZ + 3*XX
407  const mnt6_Fq3 w = mnt6_G2::mul_by_a(ZZ) + (XX + XX + XX);
408  const mnt6_Fq3 Y1Z1 = (this->Y) * (this->Z);
409  // s = 2*Y1*Z1
410  const mnt6_Fq3 s = Y1Z1 + Y1Z1;
411  // ss = s^2
412  const mnt6_Fq3 ss = s.squared();
413  // sss = s*ss
414  const mnt6_Fq3 sss = s * ss;
415  // R = Y1*s
416  const mnt6_Fq3 R = (this->Y) * s;
417  // RR = R^2
418  const mnt6_Fq3 RR = R.squared();
419  // B = (X1+R)^2 - XX - RR
420  const mnt6_Fq3 B = ((this->X) + R).squared() - XX - RR;
421  // h = w^2-2*B
422  const mnt6_Fq3 h = w.squared() - (B + B);
423  // X3 = h*s
424  const mnt6_Fq3 X3 = h * s;
425  // Y3 = w*(B-h) - 2*RR
426  const mnt6_Fq3 Y3 = w * (B - h) - (RR + RR);
427  // Z3 = sss
428  const mnt6_Fq3 Z3 = sss;
429
430  return mnt6_G2(X3, Y3, Z3);
431  }
432 }

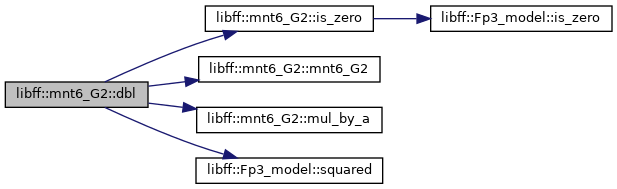

Here is the call graph for this function:
Here is the caller graph for this function:

◆ is_in_safe_subgroup()

bool libff::mnt6_G2::is_in_safe_subgroup ( ) const

Definition at line 468 of file mnt6_g2.cpp.

469 {
470  return zero() == scalar_field::mod * (*this);
471 }
Here is the call graph for this function:

◆ is_special()

bool libff::mnt6_G2::is_special ( ) const

Definition at line 125 of file mnt6_g2.cpp.

126 {
127  return (this->is_zero() || this->Z == mnt6_Fq3::one());
128 }

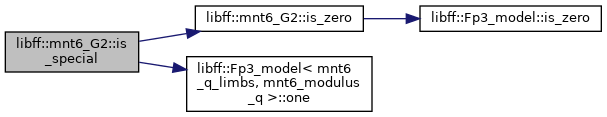

Here is the call graph for this function:
Here is the caller graph for this function:

◆ is_well_formed()

bool libff::mnt6_G2::is_well_formed ( ) const

Definition at line 444 of file mnt6_g2.cpp.

445 {
446  if (this->is_zero()) {
447  return true;
448  } else {
449
450  // y^2 = x^3 + ax + b
451  //
452  // We are using projective, so equation we need to check is actually
453  //
454  // (y/z)^2 = (x/z)^3 + a (x/z) + b
455  // z y^2 = x^3 + a z^2 x + b z^3
456  //
457  // z (y^2 - b z^2) = x ( x^2 + a z^2)
458  const mnt6_Fq3 X2 = this->X.squared();
459  const mnt6_Fq3 Y2 = this->Y.squared();
460  const mnt6_Fq3 Z2 = this->Z.squared();
461  const mnt6_Fq3 aZ2 = mnt6_twist_coeff_a * Z2;
462
463  return (
464  this->Z * (Y2 - mnt6_twist_coeff_b * Z2) == this->X * (X2 + aZ2));
465  }
466 }
Here is the call graph for this function:

◆ is_zero()

bool libff::mnt6_G2::is_zero ( ) const

Definition at line 130 of file mnt6_g2.cpp.

131 {
132  // TODO: use zero for here
133  return (this->X.is_zero() && this->Z.is_zero());
134 }

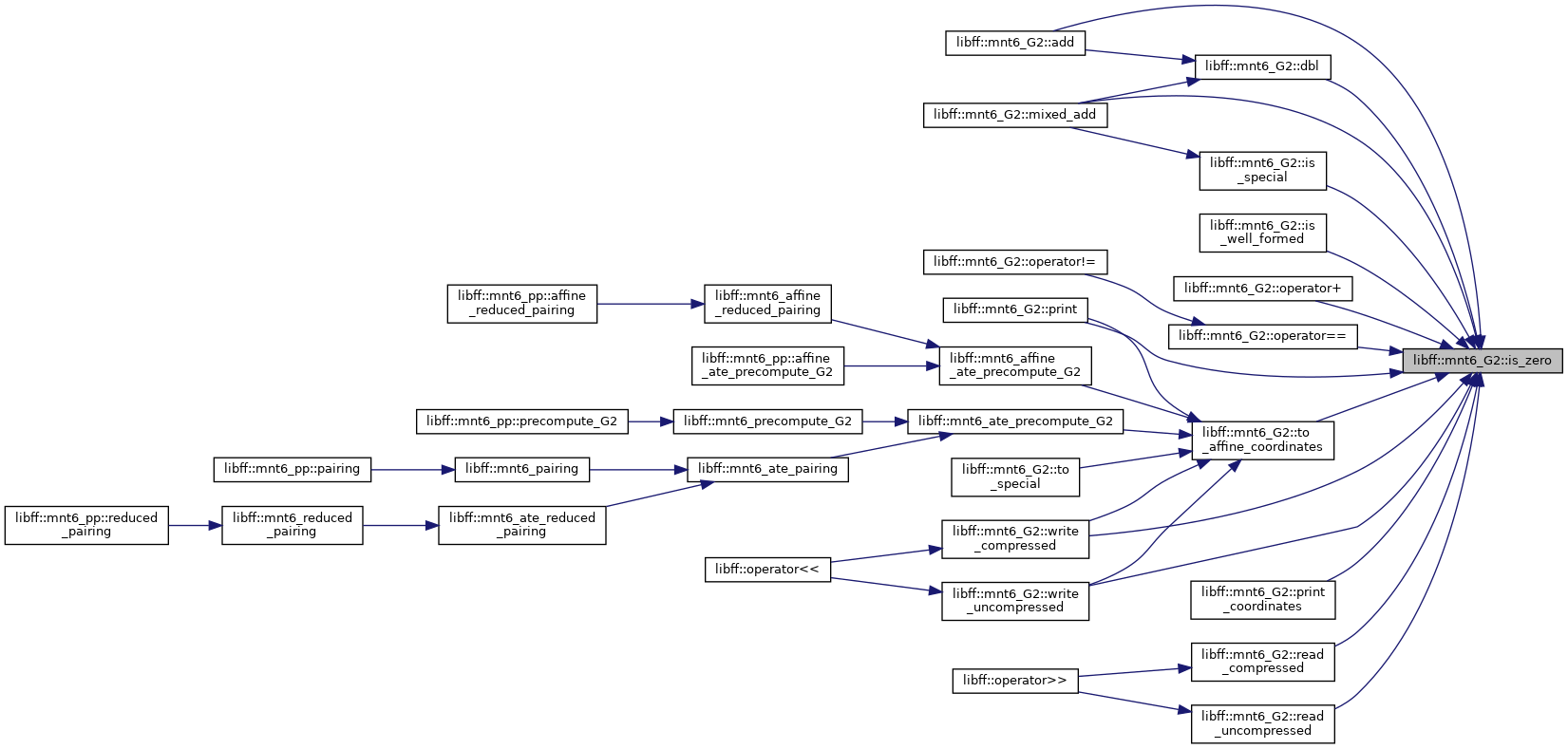

Here is the call graph for this function:
Here is the caller graph for this function:

◆ mixed_add()

mnt6_G2 libff::mnt6_G2::mixed_add ( const mnt6_G2 other) const

Definition at line 330 of file mnt6_g2.cpp.

331 {
332 #ifdef PROFILE_OP_COUNTS
333  this->add_cnt++;
334 #endif
335  // NOTE: does not handle O and pts of order 2,4
336  // http://www.hyperelliptic.org/EFD/g1p/auto-shortw-projective.html#addition-add-1998-cmo-2
337  // assert(other.Z == mnt6_Fq3::one());
338
339  if (this->is_zero()) {
340  return other;
341  }
342
343  if (other.is_zero()) {
344  return (*this);
345  }
346
347 #ifdef DEBUG
348  assert(other.is_special());
349 #endif
350
351  // X1Z2 = X1*Z2 (but other is special and not zero)
352  const mnt6_Fq3 &X1Z2 = (this->X);
353  // X2Z1 = X2*Z1
354  const mnt6_Fq3 X2Z1 = (this->Z) * (other.X);
355
356  // (used both in add and double checks)
357
358  // Y1Z2 = Y1*Z2 (but other is special and not zero)
359  const mnt6_Fq3 &Y1Z2 = (this->Y);
360  // Y2Z1 = Y2*Z1
361  const mnt6_Fq3 Y2Z1 = (this->Z) * (other.Y);
362
363  if (X1Z2 == X2Z1 && Y1Z2 == Y2Z1) {
364  return this->dbl();
365  }
366
367  // u = Y2*Z1-Y1
368  const mnt6_Fq3 u = Y2Z1 - this->Y;
369  // uu = u2
370  const mnt6_Fq3 uu = u.squared();
371  // v = X2*Z1-X1
372  const mnt6_Fq3 v = X2Z1 - this->X;
373  // vv = v2
374  const mnt6_Fq3 vv = v.squared();
375  // vvv = v*vv
376  const mnt6_Fq3 vvv = v * vv;
377  // R = vv*X1
378  const mnt6_Fq3 R = vv * this->X;
379  // A = uu*Z1-vvv-2*R
380  const mnt6_Fq3 A = uu * this->Z - vvv - R - R;
381  // X3 = v*A
382  const mnt6_Fq3 X3 = v * A;
383  // Y3 = u*(R-A)-vvv*Y1
384  const mnt6_Fq3 Y3 = u * (R - A) - vvv * this->Y;
385  // Z3 = vvv*Z1
386  const mnt6_Fq3 Z3 = vvv * this->Z;
387
388  return mnt6_G2(X3, Y3, Z3);
389 }

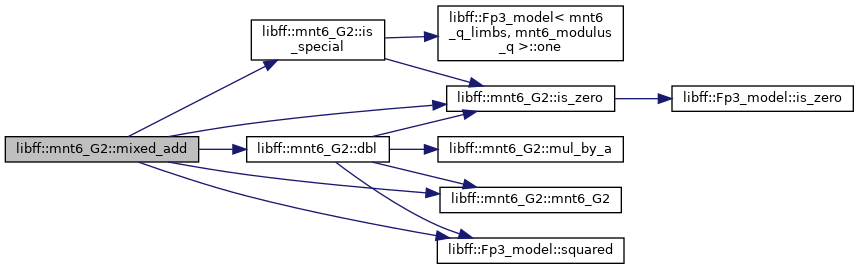

Here is the call graph for this function:

◆ mul_by_a()

mnt6_Fq3 libff::mnt6_G2::mul_by_a ( const mnt6_Fq3 elt)
static

Definition at line 40 of file mnt6_g2.cpp.

41 {
42  return mnt6_Fq3(
43  mnt6_twist_mul_by_a_c0 * elt.coeffs[1],
44  mnt6_twist_mul_by_a_c1 * elt.coeffs[2],
45  mnt6_twist_mul_by_a_c2 * elt.coeffs[0]);
46 }

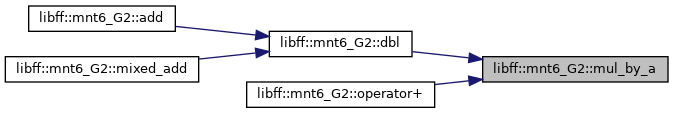

Here is the caller graph for this function:

◆ mul_by_b()

mnt6_Fq3 libff::mnt6_G2::mul_by_b ( const mnt6_Fq3 elt)
static

Definition at line 48 of file mnt6_g2.cpp.

49 {
50  return mnt6_Fq3(
51  mnt6_twist_mul_by_b_c0 * elt.coeffs[0],
52  mnt6_twist_mul_by_b_c1 * elt.coeffs[1],
53  mnt6_twist_mul_by_b_c2 * elt.coeffs[2]);
54 }

◆ mul_by_cofactor()

mnt6_G2 libff::mnt6_G2::mul_by_cofactor ( ) const

Definition at line 442 of file mnt6_g2.cpp.

442 { return mnt6_G2::h * (*this); }

◆ mul_by_q()

mnt6_G2 libff::mnt6_G2::mul_by_q ( ) const

Definition at line 434 of file mnt6_g2.cpp.

435 {
436  return mnt6_G2(
437  mnt6_twist_mul_by_q_X * (this->X).Frobenius_map(1),
438  mnt6_twist_mul_by_q_Y * (this->Y).Frobenius_map(1),
439  (this->Z).Frobenius_map(1));
440 }
Here is the call graph for this function:

◆ one()

const mnt6_G2 & libff::mnt6_G2::one ( )
static

Definition at line 475 of file mnt6_g2.cpp.

475 { return G2_one; }
Here is the caller graph for this function:

◆ operator!=()

bool libff::mnt6_G2::operator!= ( const mnt6_G2 other) const

Definition at line 161 of file mnt6_g2.cpp.

162 {
163  return !(operator==(other));
164 }
Here is the call graph for this function:

◆ operator+()

mnt6_G2 libff::mnt6_G2::operator+ ( const mnt6_G2 other) const

Definition at line 166 of file mnt6_g2.cpp.

167 {
168  // handle special cases having to do with O
169  if (this->is_zero()) {
170  return other;
171  }
172
173  if (other.is_zero()) {
174  return *this;
175  }
176
177  // no need to handle points of order 2,4
178  // (they cannot exist in a prime-order subgroup)
179
180  // handle double case, and then all the rest
181  //
182  // The code below is equivalent to (but faster than) the snippet below:
183  //
184  // if (this->operator==(other))
185  // {
186  // return this->dbl();
187  // }
188  // else
189  // {
190  // return this->add(other);
191  // }
192
193  // X1Z2 = X1*Z2
194  const mnt6_Fq3 X1Z2 = (this->X) * (other.Z);
195  // X2Z1 = X2*Z1
196  const mnt6_Fq3 X2Z1 = (this->Z) * (other.X);
197
198  // (used both in add and double checks)
199
200  // Y1Z2 = Y1*Z2
201  const mnt6_Fq3 Y1Z2 = (this->Y) * (other.Z);
202  // Y2Z1 = Y2*Z1
203  const mnt6_Fq3 Y2Z1 = (this->Z) * (other.Y);
204
205  if (X1Z2 == X2Z1 && Y1Z2 == Y2Z1) {
206  // perform dbl case
207  // XX = X1^2
208  const mnt6_Fq3 XX = (this->X).squared();
209  // ZZ = Z1^2
210  const mnt6_Fq3 ZZ = (this->Z).squared();
211  // w = a*ZZ + 3*XX
212  const mnt6_Fq3 w = mnt6_G2::mul_by_a(ZZ) + (XX + XX + XX);
213  const mnt6_Fq3 Y1Z1 = (this->Y) * (this->Z);
214  // s = 2*Y1*Z1
215  const mnt6_Fq3 s = Y1Z1 + Y1Z1;
216  // ss = s^2
217  const mnt6_Fq3 ss = s.squared();
218  // sss = s*ss
219  const mnt6_Fq3 sss = s * ss;
220  // R = Y1*s
221  const mnt6_Fq3 R = (this->Y) * s;
222  // RR = R^2
223  const mnt6_Fq3 RR = R.squared();
224  // B = (X1+R)^2 - XX - RR
225  const mnt6_Fq3 B = ((this->X) + R).squared() - XX - RR;
226  // h = w^2 - 2*B
227  const mnt6_Fq3 h = w.squared() - (B + B);
228  // X3 = h*s
229  const mnt6_Fq3 X3 = h * s;
230  // Y3 = w*(B-h) - 2*RR
231  const mnt6_Fq3 Y3 = w * (B - h) - (RR + RR);
232  // Z3 = sss
233  const mnt6_Fq3 Z3 = sss;
234
235  return mnt6_G2(X3, Y3, Z3);
236  }
237
238  // if we have arrived here we are in the add case
239  // Z1Z2 = Z1*Z2
240  const mnt6_Fq3 Z1Z2 = (this->Z) * (other.Z);
241  // u = Y2*Z1-Y1Z2
242  const mnt6_Fq3 u = Y2Z1 - Y1Z2;
243  // uu = u^2
244  const mnt6_Fq3 uu = u.squared();
245  // v = X2*Z1-X1Z2
246  const mnt6_Fq3 v = X2Z1 - X1Z2;
247  // vv = v^2
248  const mnt6_Fq3 vv = v.squared();
249  // vvv = v*vv
250  const mnt6_Fq3 vvv = v * vv;
251  // R = vv*X1Z2
252  const mnt6_Fq3 R = vv * X1Z2;
253  // A = uu*Z1Z2 - vvv - 2*R
254  const mnt6_Fq3 A = uu * Z1Z2 - (vvv + R + R);
255  // X3 = v*A
256  const mnt6_Fq3 X3 = v * A;
257  // Y3 = u*(R-A) - vvv*Y1Z2
258  const mnt6_Fq3 Y3 = u * (R - A) - vvv * Y1Z2;
259  // Z3 = vvv*Z1Z2
260  const mnt6_Fq3 Z3 = vvv * Z1Z2;
261
262  return mnt6_G2(X3, Y3, Z3);
263 }

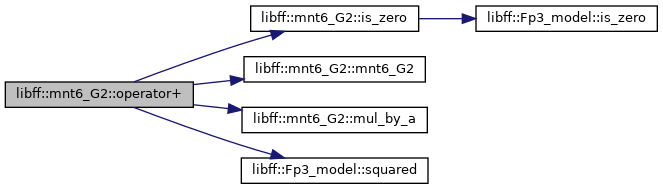

Here is the call graph for this function:

◆ operator-() [1/2]

mnt6_G2 libff::mnt6_G2::operator- ( ) const

Definition at line 265 of file mnt6_g2.cpp.

266 {
267  return mnt6_G2(this->X, -(this->Y), this->Z);
268 }
Here is the call graph for this function:

◆ operator-() [2/2]

mnt6_G2 libff::mnt6_G2::operator- ( const mnt6_G2 other) const

Definition at line 270 of file mnt6_g2.cpp.

271 {
272  return (*this) + (-other);
273 }

◆ operator==()

bool libff::mnt6_G2::operator== ( const mnt6_G2 other) const

Definition at line 136 of file mnt6_g2.cpp.

137 {
138  if (this->is_zero()) {
139  return other.is_zero();
140  }
141
142  if (other.is_zero()) {
143  return false;
144  }
145
146  /* now neither is O */
147
148  // X1/Z1 = X2/Z2 <=> X1*Z2 = X2*Z1
149  if ((this->X * other.Z) != (other.X * this->Z)) {
150  return false;
151  }
152
153  // Y1/Z1 = Y2/Z2 <=> Y1*Z2 = Y2*Z1
154  if ((this->Y * other.Z) != (other.Y * this->Z)) {
155  return false;
156  }
157
158  return true;
159 }
Here is the call graph for this function:
Here is the caller graph for this function:

◆ order()

static bigint<scalar_field::num_limbs> libff::mnt6_G2::order ( )
inlinestatic

Definition at line 97 of file mnt6_g2.hpp.

98  {
99  return scalar_field::field_char();
100  }
Here is the call graph for this function:

◆ print()

void libff::mnt6_G2::print ( ) const

Definition at line 56 of file mnt6_g2.cpp.

57 {
58  if (this->is_zero()) {
59  printf("O\n");
60  } else {
61  mnt6_G2 copy(*this);
62  copy.to_affine_coordinates();
63  gmp_printf(
64  "(%Nd*z^2 + %Nd*z + %Nd , %Nd*z^2 + %Nd*z + %Nd)\n",
65  copy.X.coeffs[2].as_bigint().data,
67  copy.X.coeffs[1].as_bigint().data,
69  copy.X.coeffs[0].as_bigint().data,
71  copy.Y.coeffs[2].as_bigint().data,
73  copy.Y.coeffs[1].as_bigint().data,
75  copy.Y.coeffs[0].as_bigint().data,
77  }
78 }

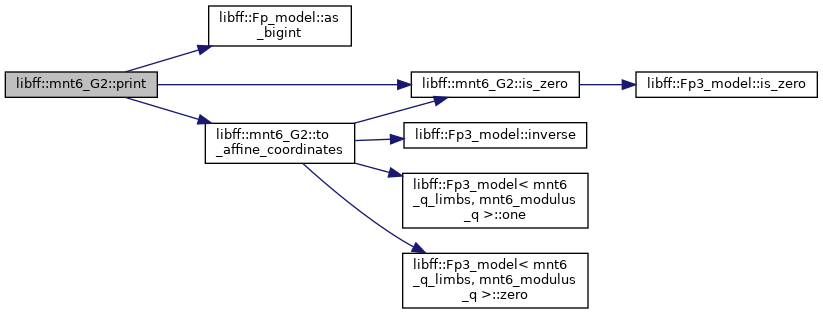

Here is the call graph for this function:

◆ print_coordinates()

void libff::mnt6_G2::print_coordinates ( ) const

Definition at line 80 of file mnt6_g2.cpp.

81 {
82  if (this->is_zero()) {
83  printf("O\n");
84  } else {
85  gmp_printf(
86  "(%Nd*z^2 + %Nd*z + %Nd : %Nd*z^2 + %Nd*z + %Nd : %Nd*z^2 + %Nd*z "
87  "+ %Nd)\n",
88  this->X.coeffs[2].as_bigint().data,
90  this->X.coeffs[1].as_bigint().data,
92  this->X.coeffs[0].as_bigint().data,
94  this->Y.coeffs[2].as_bigint().data,
96  this->Y.coeffs[1].as_bigint().data,
98  this->Y.coeffs[0].as_bigint().data,
100  this->Z.coeffs[2].as_bigint().data,
102  this->Z.coeffs[1].as_bigint().data,
104  this->Z.coeffs[0].as_bigint().data,
106  }
107 }

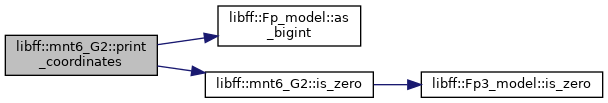

Here is the call graph for this function:

◆ random_element()

mnt6_G2 libff::mnt6_G2::random_element ( )
static

Definition at line 477 of file mnt6_g2.cpp.

478 {
479  return (mnt6_Fr::random_element().as_bigint()) * G2_one;
480 }
Here is the call graph for this function:

◆ read_compressed()

void libff::mnt6_G2::read_compressed ( std::istream &  in,
mnt6_G2 g
)
static

Definition at line 520 of file mnt6_g2.cpp.

521 {
522  char is_zero;
523  mnt6_Fq3 tX, tY;
524
525  // this reads is_zero;
526  in.read((char *)&is_zero, 1);
527  is_zero -= '0';
529
530  unsigned char Y_lsb;
531  in >> tX;
533  in.read((char *)&Y_lsb, 1);
534  Y_lsb -= '0';
535
536  // y = +/- sqrt(x^3 + a*x + b)
537  if (!is_zero) {
538  const mnt6_Fq3 tX2 = tX.squared();
539  const mnt6_Fq3 tY2 =
540  (tX2 + mnt6_twist_coeff_a) * tX + mnt6_twist_coeff_b;
541  tY = tY2.sqrt();
542
543  if ((tY.coeffs[0].as_bigint().data[0] & 1) != Y_lsb) {
544  tY = -tY;
545  }
546  }
547
548  // using projective coordinates
549  if (!is_zero) {
550  g.X = tX;
551  g.Y = tY;
552  g.Z = mnt6_Fq3::one();
553  } else {
554  g = mnt6_G2::zero();
555  }
556 }

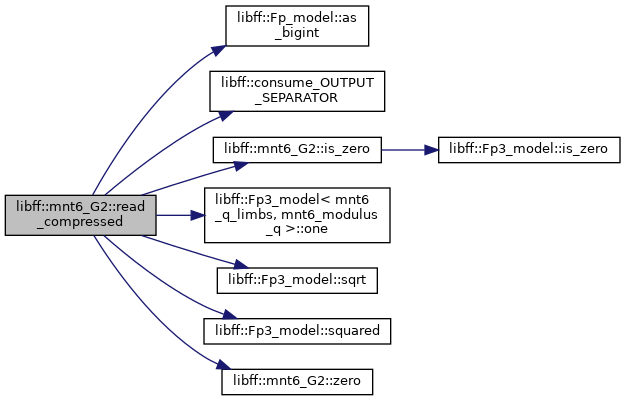

Here is the call graph for this function:
Here is the caller graph for this function:

◆ read_uncompressed()

void libff::mnt6_G2::read_uncompressed ( std::istream &  in,
mnt6_G2 g
)
static

Definition at line 502 of file mnt6_g2.cpp.

503 {
504  char is_zero;
505  mnt6_Fq3 tX, tY;
506
507  in >> is_zero >> tX >> tY;
508  is_zero -= '0';
509
510  // using projective coordinates
511  if (!is_zero) {
512  g.X = tX;
513  g.Y = tY;
514  g.Z = mnt6_Fq3::one();
515  } else {
516  g = mnt6_G2::zero();
517  }
518 }

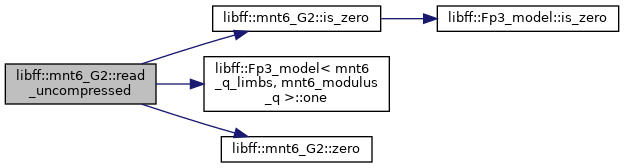

Here is the call graph for this function:
Here is the caller graph for this function:

◆ size_in_bits()

static size_t libff::mnt6_G2::size_in_bits ( )
inlinestatic

Definition at line 92 of file mnt6_g2.hpp.

92 { return twist_field::size_in_bits() + 1; }
Here is the call graph for this function:

◆ to_affine_coordinates()

void libff::mnt6_G2::to_affine_coordinates ( )

Definition at line 109 of file mnt6_g2.cpp.

110 {
111  if (this->is_zero()) {
112  this->X = mnt6_Fq3::zero();
113  this->Y = mnt6_Fq3::one();
114  this->Z = mnt6_Fq3::zero();
115  } else {
116  const mnt6_Fq3 Z_inv = Z.inverse();
117  this->X = this->X * Z_inv;
118  this->Y = this->Y * Z_inv;
119  this->Z = mnt6_Fq3::one();
120  }
121 }

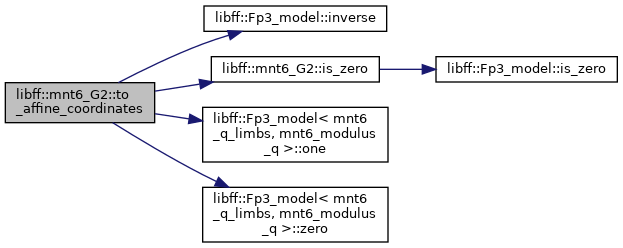

Here is the call graph for this function:

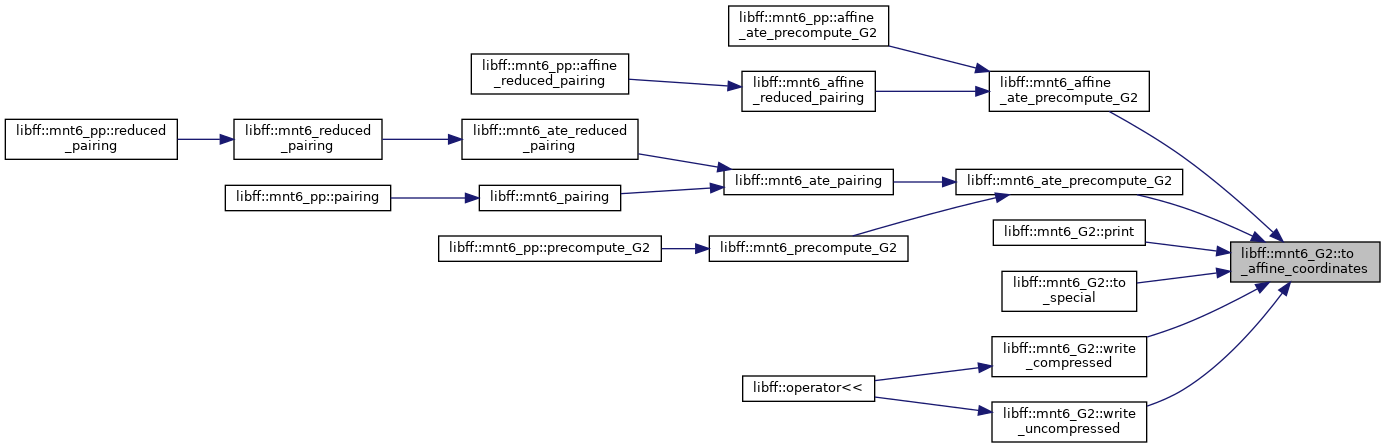

Here is the caller graph for this function:

◆ to_special()

void libff::mnt6_G2::to_special ( )

Definition at line 123 of file mnt6_g2.cpp.

123 { this->to_affine_coordinates(); }

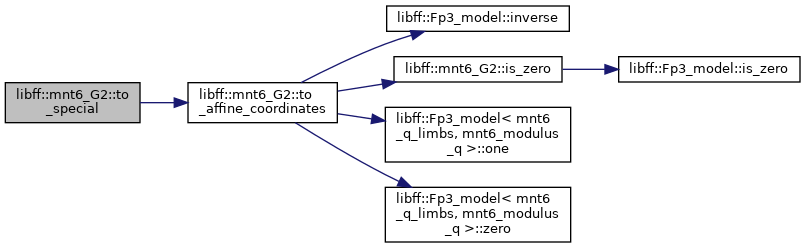

Here is the call graph for this function:

◆ write_compressed()

void libff::mnt6_G2::write_compressed ( std::ostream &  out) const

Definition at line 491 of file mnt6_g2.cpp.

492 {
493  mnt6_G2 copy(*this);
494  copy.to_affine_coordinates();
495
496  out << (copy.is_zero() ? 1 : 0) << OUTPUT_SEPARATOR;
497  /* storing LSB of Y */
498  out << copy.X << OUTPUT_SEPARATOR
499  << (copy.Y.coeffs[0].as_bigint().data[0] & 1);
500 }

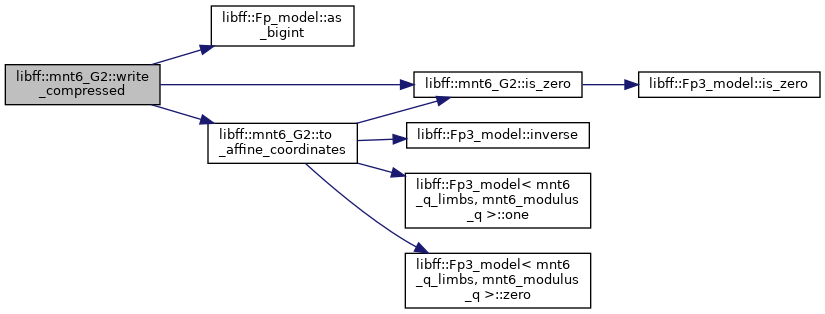

Here is the call graph for this function:
Here is the caller graph for this function:

◆ write_uncompressed()

void libff::mnt6_G2::write_uncompressed ( std::ostream &  out) const

Definition at line 482 of file mnt6_g2.cpp.

483 {
484  mnt6_G2 copy(*this);
485  copy.to_affine_coordinates();
486
487  out << (copy.is_zero() ? 1 : 0) << OUTPUT_SEPARATOR;
488  out << copy.X << OUTPUT_SEPARATOR << copy.Y;
489 }

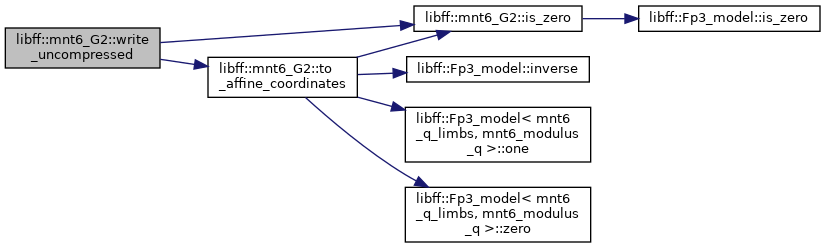

Here is the call graph for this function:
Here is the caller graph for this function:

◆ zero()

const mnt6_G2 & libff::mnt6_G2::zero ( )
static

Definition at line 473 of file mnt6_g2.cpp.

473 { return G2_zero; }

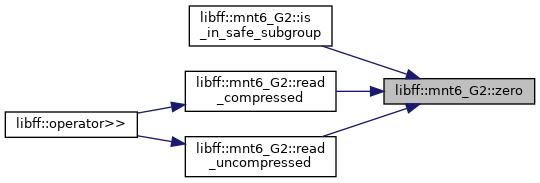

Here is the caller graph for this function:

Member Data Documentation

◆ coeff_a

mnt6_Fq3 libff::mnt6_G2::coeff_a
static

Definition at line 38 of file mnt6_g2.hpp.

◆ coeff_b

mnt6_Fq3 libff::mnt6_G2::coeff_b
static

Definition at line 39 of file mnt6_g2.hpp.

◆ fixed_base_exp_window_table

std::vector< size_t > libff::mnt6_G2::fixed_base_exp_window_table
static

Definition at line 34 of file mnt6_g2.hpp.

◆ G2_one

mnt6_G2 libff::mnt6_G2::G2_one
static

Definition at line 36 of file mnt6_g2.hpp.

◆ G2_zero

mnt6_G2 libff::mnt6_G2::G2_zero
static

Definition at line 35 of file mnt6_g2.hpp.

◆ h

bigint< mnt6_G2::h_limbs > libff::mnt6_G2::h
static

Definition at line 49 of file mnt6_g2.hpp.

◆ h_bitcount

const mp_size_t libff::mnt6_G2::h_bitcount = 596
static

Definition at line 46 of file mnt6_g2.hpp.

◆ h_limbs

const mp_size_t libff::mnt6_G2::h_limbs
static
Initial value:
=
(h_bitcount + GMP_NUMB_BITS - 1) / GMP_NUMB_BITS

Definition at line 47 of file mnt6_g2.hpp.

◆ twist

mnt6_Fq3 libff::mnt6_G2::twist
static

Definition at line 37 of file mnt6_g2.hpp.

◆ wnaf_window_table

std::vector< size_t > libff::mnt6_G2::wnaf_window_table
static

Definition at line 33 of file mnt6_g2.hpp.

◆ X

mnt6_Fq3 libff::mnt6_G2::X

Definition at line 51 of file mnt6_g2.hpp.

◆ Y

mnt6_Fq3 libff::mnt6_G2::Y

Definition at line 51 of file mnt6_g2.hpp.

◆ Z

mnt6_Fq3 libff::mnt6_G2::Z

Definition at line 51 of file mnt6_g2.hpp.


The documentation for this class was generated from the following files:
libff::mnt6_twist_mul_by_a_c0
mnt6_Fq mnt6_twist_mul_by_a_c0
Definition: mnt6_init.cpp:27
libff::mnt6_twist_mul_by_b_c2
mnt6_Fq mnt6_twist_mul_by_b_c2
Definition: mnt6_init.cpp:32
libff::mnt6_G2::Z
mnt6_Fq3 Z
Definition: mnt6_g2.hpp:51
libff::Fp_model::random_element
static Fp_model< n, modulus > random_element()
returns random element of Fp_model
libff::mnt6_G2::one
static const mnt6_G2 & one()
Definition: mnt6_g2.cpp:475
libff::Fp3_model< mnt6_q_limbs, mnt6_modulus_q >::one
static Fp3_model< n, modulus > one()
libff::mnt6_twist_mul_by_b_c1
mnt6_Fq mnt6_twist_mul_by_b_c1
Definition: mnt6_init.cpp:31
libff::mnt6_twist_mul_by_q_Y
mnt6_Fq mnt6_twist_mul_by_q_Y
Definition: mnt6_init.cpp:34
libff::mnt6_G2::X
mnt6_Fq3 X
Definition: mnt6_g2.hpp:51
libff::mnt6_twist_mul_by_a_c1
mnt6_Fq mnt6_twist_mul_by_a_c1
Definition: mnt6_init.cpp:28
libff::mnt6_twist_mul_by_q_X
mnt6_Fq mnt6_twist_mul_by_q_X
Definition: mnt6_init.cpp:33
libff::mnt6_twist_coeff_b
mnt6_Fq3 mnt6_twist_coeff_b
Definition: mnt6_init.cpp:26
libff::mnt6_G2::G2_zero
static mnt6_G2 G2_zero
Definition: mnt6_g2.hpp:35
libff::Fp3_model::coeffs
my_Fp coeffs[3]
Definition: fp3.hpp:59
OUTPUT_SEPARATOR
#define OUTPUT_SEPARATOR
Definition: serialization.hpp:69
libff::mnt6_G2::Y
mnt6_Fq3 Y
Definition: mnt6_g2.hpp:51
libff::mnt6_G2::h_bitcount
static const mp_size_t h_bitcount
Definition: mnt6_g2.hpp:46
libff::mnt6_twist_coeff_a
mnt6_Fq3 mnt6_twist_coeff_a
Definition: mnt6_init.cpp:25
libff::mnt6_G2::operator==
bool operator==(const mnt6_G2 &other) const
Definition: mnt6_g2.cpp:136
libff::mnt6_G2::dbl
mnt6_G2 dbl() const
Definition: mnt6_g2.cpp:391
libff::consume_OUTPUT_SEPARATOR
void consume_OUTPUT_SEPARATOR(std::istream &in)
libff::Fp_model< mnt6_q_limbs, mnt6_modulus_q >::num_limbs
static const mp_size_t num_limbs
Definition: fp.hpp:47
libff::mnt6_G2::G2_one
static mnt6_G2 G2_one
Definition: mnt6_g2.hpp:36
libff::mnt6_Fq3
Fp3_model< mnt6_q_limbs, mnt6_modulus_q > mnt6_Fq3
Definition: mnt6_init.hpp:38
libff::mnt6_G2::zero
static const mnt6_G2 & zero()
Definition: mnt6_g2.cpp:473
libff::Fp_model< mnt6_q_limbs, mnt6_modulus_q >::field_char
static const bigint< n > & field_char()
Definition: fp.hpp:136
libff::mnt6_G2::mnt6_G2
mnt6_G2()
Definition: mnt6_g2.cpp:33
libff::mnt6_twist_mul_by_a_c2
mnt6_Fq mnt6_twist_mul_by_a_c2
Definition: mnt6_init.cpp:29
libff::Fp_model::as_bigint
bigint< n > as_bigint() const
libff::mnt6_G2::mul_by_a
static mnt6_Fq3 mul_by_a(const mnt6_Fq3 &elt)
Definition: mnt6_g2.cpp:40
libff::mnt6_G2::h
static bigint< h_limbs > h
Definition: mnt6_g2.hpp:49
libff::Fp3_model::inverse
Fp3_model inverse() const
libff::Fp3_model::sqrt
Fp3_model sqrt() const
HAS TO BE A SQUARE (else does not terminate)
libff::Fp3_model::is_zero
bool is_zero() const
Definition: fp3.hpp:89
libff::Fp3_model< mnt6_q_limbs, mnt6_modulus_q >::size_in_bits
static size_t size_in_bits()
Definition: fp3.hpp:109
libff::Fp_model::mod
static const constexpr bigint< n > & mod
Definition: fp.hpp:48
libff::mnt6_G2::is_zero
bool is_zero() const
Definition: mnt6_g2.cpp:130
libff::Fp3_model::squared
Fp3_model squared() const
libff::mnt6_G2::to_affine_coordinates
void to_affine_coordinates()
Definition: mnt6_g2.cpp:109
libff::Fp3_model< mnt6_q_limbs, mnt6_modulus_q >::zero
static Fp3_model< n, modulus > zero()
libff::mnt6_twist_mul_by_b_c0
mnt6_Fq mnt6_twist_mul_by_b_c0
Definition: mnt6_init.cpp:30
