Clearmatics Libff  0.1
C++ library for Finite Fields and Elliptic Curves
Functions
profile_algebra_groups.cpp File Reference
#include <exception>
#include <libff/algebra/curves/alt_bn128/alt_bn128_pp.hpp>
#include <libff/algebra/curves/bls12_377/bls12_377_pp.hpp>
#include <libff/common/profiling.hpp>

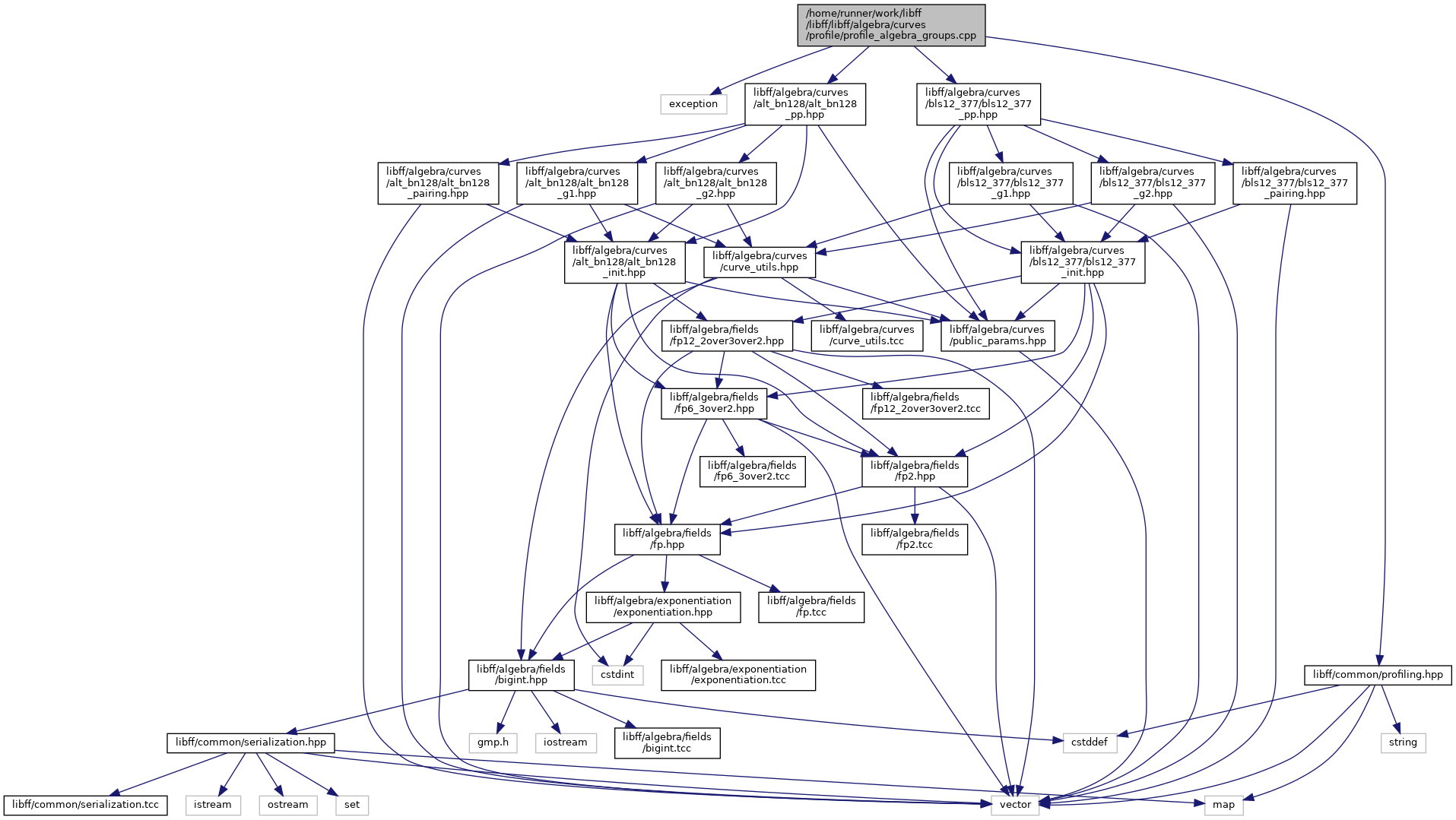

Include dependency graph for profile_algebra_groups.cpp:

Go to the source code of this file.

Functions

template<typename GroupT >
bool profile_group_add ()

template<typename GroupT >
bool profile_group_mixed_add ()

template<typename GroupT >
bool profile_group_membership ()

template<typename ppT >
bool profile_pairing_e_over_e ()

int main (void)


Function Documentation

◆ main()

int main ( void  )

Definition at line 187 of file profile_algebra_groups.cpp.

188 {
189  std::cout << "alt_bn128_pp\n";
190  alt_bn128_pp::init_public_params();
191
192  std::cout << " profile_group_add<alt_bn128_G1>:\n";
193  if (!profile_group_add<alt_bn128_G1>()) {
194  throw std::runtime_error("failed");
195  }
196
197  std::cout << " profile_group_mixed_add<alt_bn128_G1>:\n";
198  if (!profile_group_mixed_add<alt_bn128_G1>()) {
199  throw std::runtime_error("failed");
200  }
201
202  std::cout << " profile_group_add<alt_bn128_G2>:\n";
203  if (!profile_group_add<alt_bn128_G2>()) {
204  throw std::runtime_error("failed");
205  }
206
207  std::cout << " profile_group_mixed_add<alt_bn128_G2>:\n";
208  if (!profile_group_mixed_add<alt_bn128_G2>()) {
209  throw std::runtime_error("failed");
210  }
211
212  std::cout << " profile_affine_e_over_e<alt_bn128>:\n";
213  profile_pairing_e_over_e<alt_bn128_pp>();
214
215  std::cout << "bls12_377_pp\n";
216  bls12_377_pp::init_public_params();
217
218  std::cout << " profile_group_add<bls12_377_G1>:\n";
219  if (!profile_group_add<bls12_377_G1>()) {
220  throw std::runtime_error("failed");
221  }
222
223  std::cout << " profile_group_mixed_add<bls12_377_G1>:\n";
224  if (!profile_group_mixed_add<bls12_377_G1>()) {
225  throw std::runtime_error("failed");
226  }
227
228  std::cout << " profile_group_add<bls12_377_G2>:\n";
229  if (!profile_group_add<bls12_377_G2>()) {
230  throw std::runtime_error("failed");
231  }
232
233  std::cout << " profile_group_membership<bls12_377_G1>:\n";
234  if (!profile_group_membership<bls12_377_G1>()) {
235  throw std::runtime_error("failed");
236  }
237
238  std::cout << " profile_group_membership<bls12_377_G2>:\n";
239  if (!profile_group_membership<bls12_377_G2>()) {
240  throw std::runtime_error("failed");
241  }
242
243  std::cout << " profile_affine_e_over_e<bls12_377>:\n";
244  profile_pairing_e_over_e<bls12_377_pp>();
245
246  return 0;
247 }

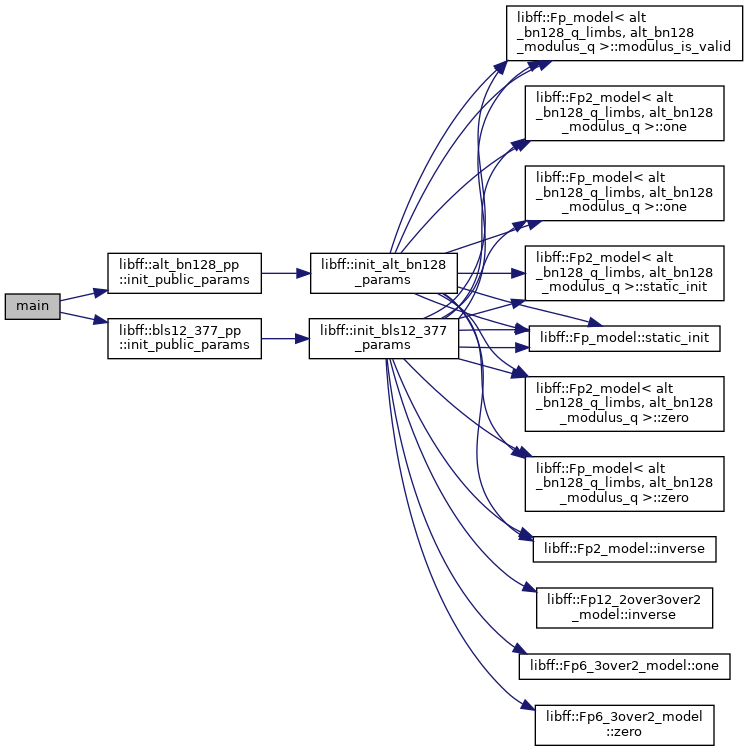

Here is the call graph for this function:

◆ profile_group_add()

template<typename GroupT >
bool profile_group_add ( )

Definition at line 21 of file profile_algebra_groups.cpp.

22 {
23  std::vector<GroupT> elements;
24  {
25  elements.reserve(ADD_NUM_ELEMENTS);
26  size_t i = 0;
27  for (; i < ADD_NUM_DIFFERENT_ELEMENTS; ++i) {
28  elements.push_back(GroupT::random_element());
29  }
30  for (; i < ADD_NUM_ELEMENTS; ++i) {
31  elements.push_back(elements[i % ADD_NUM_DIFFERENT_ELEMENTS]);
32  }
33  }
34
35  std::cout << " num elements: " << std::to_string(ADD_NUM_ELEMENTS)
36  << "\n";
37
38  size_t num_elements = 0;
39  GroupT accum = GroupT::zero();
40  enter_block("group add operation profiling");
41  for (const GroupT &el : elements) {
42  accum = accum.add(el);
43  num_elements++;
44  }
45  leave_block("group add operation profiling");
46
47  if (num_elements != ADD_NUM_ELEMENTS) {
48  throw std::runtime_error("invalid number of elements seen");
49  }
50
51  return true;
52 }

◆ profile_group_membership()

template<typename GroupT >
bool profile_group_membership ( )

Definition at line 89 of file profile_algebra_groups.cpp.

90 {
91  static const size_t NUM_ELEMENTS = 1000;
92
93  // Measure the time taken to check membership of 1000 elements. (Note all
94  // elements are in fact members of the group - we are not testing
95  // correctness here).
96
97  std::vector<GroupT> elements;
98  elements.reserve(NUM_ELEMENTS);
99  for (size_t i = 0; i < NUM_ELEMENTS; ++i) {
100  elements.push_back(GroupT::random_element());
101  }
102
103  enter_block("group membership profiling");
104  for (const GroupT &el : elements) {
105  if (!el.is_in_safe_subgroup()) {
106  return false;
107  }
108  }
109  leave_block("group membership profiling");
110
111  return true;
112 }
Here is the call graph for this function:

◆ profile_group_mixed_add()

template<typename GroupT >
bool profile_group_mixed_add ( )

Definition at line 54 of file profile_algebra_groups.cpp.

55 {
56  std::vector<GroupT> elements;
57  {
58  elements.reserve(ADD_NUM_ELEMENTS);
59  size_t i = 0;
60  for (; i < ADD_NUM_DIFFERENT_ELEMENTS; ++i) {
61  GroupT e = GroupT::random_element();
62  e.to_affine_coordinates();
63  elements.push_back(e);
64  }
65  for (; i < ADD_NUM_ELEMENTS; ++i) {
66  elements.push_back(elements[i % ADD_NUM_DIFFERENT_ELEMENTS]);
67  }
68  }
69
70  std::cout << " num elements: " << std::to_string(ADD_NUM_ELEMENTS)
71  << "\n";
72
73  size_t num_elements = 0;
74  GroupT accum = GroupT::one();
75  enter_block("group mixed add operation profiling");
76  for (const GroupT &el : elements) {
77  accum = accum.mixed_add(el);
78  num_elements++;
79  }
80  leave_block("group mixed add operation profiling");
81
82  if (num_elements != ADD_NUM_ELEMENTS) {
83  throw std::runtime_error("invalid number of elements seen");
84  }
85
86  return true;
87 }

◆ profile_pairing_e_over_e()

template<typename ppT >
bool profile_pairing_e_over_e ( )

Definition at line 114 of file profile_algebra_groups.cpp.

115 {
116  constexpr size_t NUM_ITERATIONS = ADD_NUM_DIFFERENT_ELEMENTS;
117
118  // Mock BLS signature verification
119
120  const Fr<ppT> sk = Fr<ppT>::random_element();
121  G2<ppT> pk = sk * G2<ppT>::one();
122  pk.to_affine_coordinates();
123
124  // Messages to sign
125  std::vector<Fr<ppT>> messages;
126  messages.reserve(NUM_ITERATIONS);
127  for (size_t i = 0; i < NUM_ITERATIONS; ++i) {
128  messages.push_back(Fr<ppT>::random_element());
129  }
130
131  // Signatures. Every other one is invalid.
132  std::vector<G1<ppT>> signatures;
133  signatures.reserve(NUM_ITERATIONS);
134  for (size_t i = 0; i < NUM_ITERATIONS; ++i) {
135  if (i & 1) {
136  signatures.push_back(sk * messages[i] * G1<ppT>::one());
137  } else {
138  signatures.push_back(messages[i] * G1<ppT>::one());
139  }
140  signatures.back().to_affine_coordinates();
141  }
142
143  // Precompute the parts we expect to be known up-front.
144  const G2_precomp<ppT> id_precomp = ppT::precompute_G2(-G2<ppT>::one());
145  const G2_precomp<ppT> pk_precomp = ppT::precompute_G2(pk);
146
147  enter_block("pairing_e_over_e");
148
149  // NOTE: the pairing implementations call enter_block and leave_block in
150  // several places, generating a lot of output, which slows down the
151  // performance a lot. Hence we suppress the profiling here, and re-enable
152  // it before the end of the block.
153
156
157  for (size_t i = 0; i < NUM_ITERATIONS; ++i) {
158  const G1_precomp<ppT> sig_prec = ppT::precompute_G1(signatures[i]);
159  const G1_precomp<ppT> H_precomp =
160  ppT::precompute_G1(messages[i] * G1<ppT>::one());
161
162  const Fqk<ppT> result =
163  ppT::final_exponentiation(ppT::double_miller_loop(
164  sig_prec, id_precomp, H_precomp, pk_precomp));
165
166  if (i & 1) {
167  if (result != Fqk<ppT>::one()) {
168  throw std::runtime_error(
169  "signature verification failed " + std::to_string(i));
170  }
171  } else {
172  if (result == Fqk<ppT>::one()) {
173  throw std::runtime_error(
174  "signature verification passed (should fail)");
175  }
176  }
177  }
178
181
182  leave_block("pairing_e_over_e");
183
184  return true;
185 }
libff::enter_block
void enter_block(const std::string &msg, const bool indent)
Definition: profiling.cpp:271
libff::G1
typename EC_ppT::G1_type G1
Definition: public_params.hpp:76
libff::G2
typename EC_ppT::G2_type G2
Definition: public_params.hpp:77
libff::G1_precomp
typename EC_ppT::G1_precomp_type G1_precomp
Definition: public_params.hpp:78
libff::Fqk
typename EC_ppT::Fqk_type Fqk
Definition: public_params.hpp:86
libff::Fr
typename EC_ppT::Fp_type Fr
Definition: public_params.hpp:75
libff::G2_precomp
typename EC_ppT::G2_precomp_type G2_precomp
Definition: public_params.hpp:79
NUM_ITERATIONS
constexpr size_t NUM_ITERATIONS
Definition: profile_multiexp.cpp:14
libff::leave_block
void leave_block(const std::string &msg, const bool indent)
Definition: profiling.cpp:305
libff::inhibit_profiling_counters
bool inhibit_profiling_counters
Definition: profiling.cpp:108
libff::inhibit_profiling_info
bool inhibit_profiling_info
Definition: profiling.cpp:107
