#include "libff/algebra/curves/alt_bn128/alt_bn128_pp.hpp"
#include "libff/algebra/curves/bls12_377/bls12_377_pp.hpp"
#include "libff/algebra/curves/curve_serialization.hpp"
#include "libff/common/profiling.hpp"
#include <aio.h>
#include <exception>
#include <fcntl.h>
#include <fstream>
#include <map>
#include <sys/mman.h>
#include <sys/stat.h>
#include <thread>
#include <unistd.h>

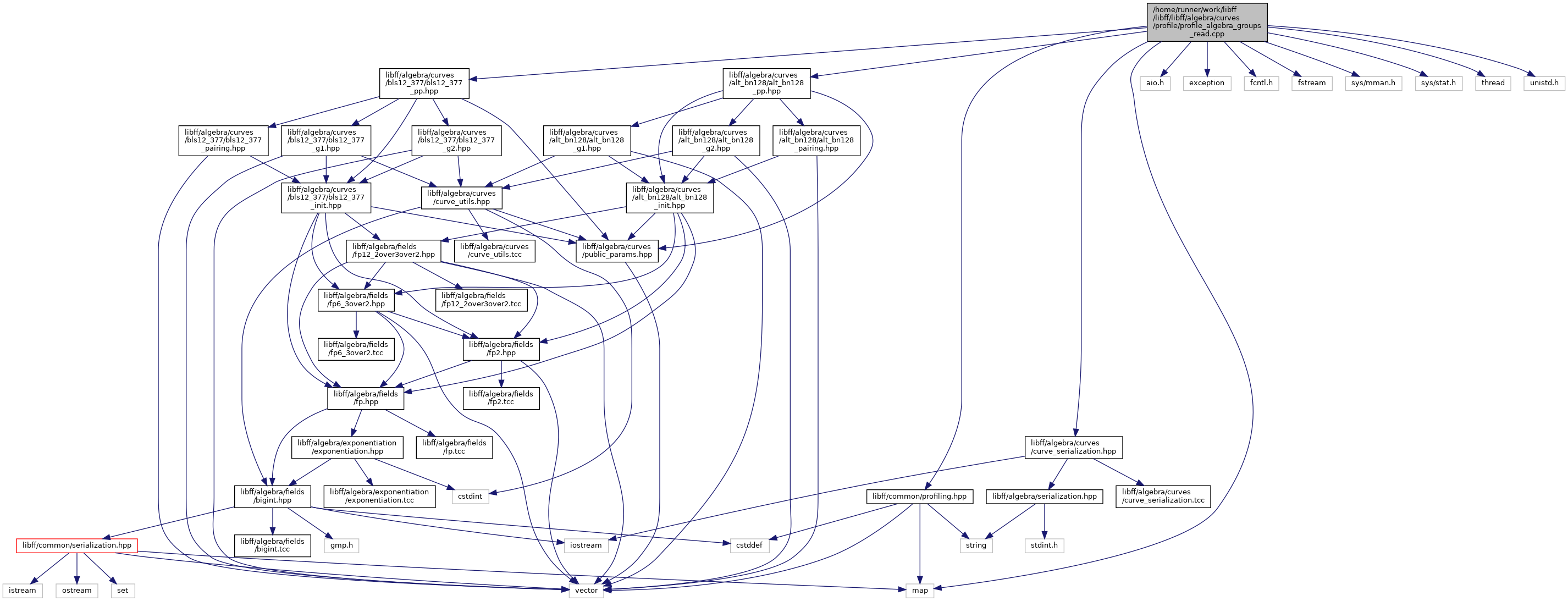

Include dependency graph for profile_algebra_groups_read.cpp:

Classes
class	batched_aio_reader< BatchSize >

class	profile_selector< GroupT >

Typedefs
typedef void(*	profile_fn) (const std::string &, const size_t)

Functions
std::string	get_filename (const std::string &identifier)

template<typename GroupT , form_t Form = form_montgomery, compression_t Comp = compression_off>
bool	ensure_group_elements_file_uncompressed (const std::string &identifier)
	Returns true if the file was already present. More...

template<typename GroupT , form_t Form = form_montgomery, compression_t Comp = compression_off>
void	profile_group_read_sequential_uncompressed (const std::string &identifier, const size_t)

template<typename GroupT , form_t Form = form_montgomery, compression_t Comp = compression_off>
void	profile_group_read_random_seek_uncompressed (const std::string &identifier)

template<typename GroupT , form_t Form = form_montgomery, compression_t Comp = compression_off>
void	profile_group_read_random_seek_ordered_uncompressed (const std::string &identifier, const size_t interval)

template<typename GroupT >
void	profile_group_read_random_seek_fd_uncompressed (const std::string &identifier, const size_t)

template<typename GroupT >
void	profile_group_read_random_seek_fd_ordered_uncompressed (const std::string &identifier, const size_t)

template<typename GroupT >
void	profile_group_read_random_seek_mmap_ordered_uncompressed (const std::string &identifier, const size_t interval)

void	cb_init (aiocb cb, int fd, size_t offset_bytes, size_t size_bytes, void dest)

void	cb_enqueue (aiocb *cb)

ssize_t	cb_wait (aiocb *cb)

template<typename GroupT >
void	profile_group_read_random_batch_aio_ordered_uncompressed (const std::string &identifier, const size_t interval)

void	usage (const char *const argv0)

template<typename GroupT >
void	run_profile (const std::string &profile, const std::string &identifier, const size_t interval)

int	main (const int argc, char const const const argv)

Typedef Documentation

◆ profile_fn

typedef void(* profile_fn) (const std::string &, const size_t)

Definition at line 560 of file profile_algebra_groups_read.cpp.

Function Documentation

◆ cb_enqueue()

void cb_enqueue ( aiocb * cb )

Definition at line 353 of file profile_algebra_groups_read.cpp.

 {
     const int r = aio_read(cb);
     if (0 == r) {
         // std::cout << "cb_wait: enqueued\n";
         return;
     }

     throw std::runtime_error(
         std::string("error from aio_read: ") + strerror(errno));
 }

◆ cb_init()

void cb_init	(	aiocb *	cb,
		int	fd,
		size_t	offset_bytes,
		size_t	size_bytes,
		void *	dest
	)

Definition at line 338 of file profile_algebra_groups_read.cpp.

 {
     // std::cout << "cb_init: " << fd << ", off: " << offset_bytes << ", size: "
     // << size_bytes << ", dst: " << dest << "\n";

     memset(cb, 0, sizeof(aiocb));
     cb->aio_fildes = fd;
     cb->aio_offset = offset_bytes;
     cb->aio_buf = dest;
     cb->aio_nbytes = size_bytes;
     cb->aio_sigevent.sigev_notify = SIGEV_NONE;
     cb->aio_lio_opcode = LIO_READ;
 }

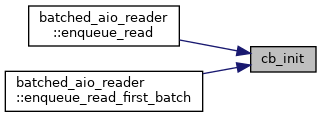

Here is the caller graph for this function:

◆ cb_wait()

ssize_t cb_wait ( aiocb * cb )

Definition at line 365 of file profile_algebra_groups_read.cpp.

 {
     int err;
     for (;;) {
         err = aio_error(cb);
         if (err == EINPROGRESS) {
             std::this_thread::yield();
             // sleep(0);
             continue;
         }

         const ssize_t ret = aio_return(cb);
         if (ret >= 0) {
             // std::cout << "cb_wait: done\n";
             return ret;
         }

         if (err == ECANCELED) {
             throw std::runtime_error("aio_error: cancelled");
         }

         throw std::runtime_error(
             std::string("error from aio_error: ") + strerror(errno));
     }
 }

Here is the caller graph for this function:

◆ ensure_group_elements_file_uncompressed()

template<typename GroupT , form_t Form = form_montgomery, compression_t Comp = compression_off>

bool ensure_group_elements_file_uncompressed ( const std::string & identifier )

Returns true if the file was already present.

Definition at line 34 of file profile_algebra_groups_read.cpp.

 {
     const std::string filename = get_filename(identifier);

     // If file doesn't exist, create it.
     struct stat s;
     if (stat(filename.c_str(), &s)) {
         std::cout << "  File '" << filename.c_str()
                   << "' does not exist. Creating ... ";
         std::flush(std::cout);

         // Fill a buffer with random elements
         std::vector<GroupT> elements;
         elements.reserve(NUM_DIFFERENT_ELEMENTS);
         for (size_t i = 0; i < NUM_DIFFERENT_ELEMENTS; ++i) {
             elements.push_back(GroupT::random_element());
         }

         // Use the buffer to fill the file
         std::ofstream out_s(
             filename.c_str(), std::ios_base::out | std::ios_base::binary);
         for (size_t i = 0; i < NUM_ELEMENTS_IN_FILE; ++i) {
             group_write<encoding_binary, Form, Comp>(
                 elements[i % NUM_DIFFERENT_ELEMENTS], out_s);
         }
         out_s.close();

         std::cout << "Created\n";
         return false;
     }

     return true;
 }

Here is the call graph for this function:

◆ get_filename()

std::string get_filename ( const std::string & identifier )

Definition at line 24 of file profile_algebra_groups_read.cpp.

 {
     return "group_elements_uncompressed_" + identifier + ".bin";
 }

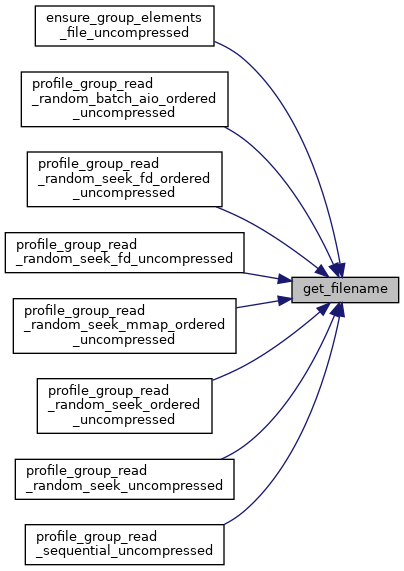

Here is the caller graph for this function:

◆ main()

int main	(	const int	argc,
		char const const const	argv
	)

Definition at line 622 of file profile_algebra_groups_read.cpp.

 {
     std::string profile = "all";
     size_t sparse_interval = MAX_SPARSE_ELEMENT_INTERVAL;

     for (size_t i = 1; i < (size_t)argc; ++i) {
         const char *const arg = argv[i];
         if (!strcmp(arg, "--interval")) {
             sparse_interval = std::stoi(std::string(argv[++i]));
         } else if (!strcmp(arg, "--profile")) {
             profile = argv[++i];
         } else {
             usage(argv[0]);
             return 1;
         }
     }

     if (sparse_interval > MAX_SPARSE_ELEMENT_INTERVAL) {
         throw std::runtime_error("invalid interval");
     }

     // Some configurations are disabled for now.

     std::cout << "alt_bn128_pp\n";
     alt_bn128_pp::init_public_params();
     run_profile<alt_bn128_G1>(profile, "alt_bn128_G1", sparse_interval);
     run_profile<alt_bn128_G2>(profile, "alt_bn128_G2", sparse_interval);

     // For now (to avoid too many large data files and very long runtimes, this
     // is disabled. Uncomment to run for bls12-377.

     // std::cout << "bls12_377_pp\n";
     // bls12_377_pp::init_public_params();
     // run_profile<bls12_377_G1>("bls12_377_G1");
     // run_profile<bls12_377_G2>("bls12_377_G2");

     return 0;
 }

◆ profile_group_read_random_batch_aio_ordered_uncompressed()

template<typename GroupT >

void profile_group_read_random_batch_aio_ordered_uncompressed	(	const std::string &	identifier,
		const size_t	interval
	)

Perform async reads of single group elements, with some (average) interval between reads on disk, using the aio_* family of functions. Multple aio requests are kept in-flight at the same time.

Definition at line 482 of file profile_algebra_groups_read.cpp.

 {
     const std::string filename = get_filename(identifier);

     // Perform reads from a set of orderd, but random, locations where the
     // average interval between read locations (the sparsity) is `interval`.
     // Treat the file as being divided into sections, each of size `interval`.
     // For each section, we perform a single read from a random offset.

     // Preecompute the random offsets
     std::vector<size_t> section_offsets;
     section_offsets.reserve(NUM_ELEMENTS_TO_READ);
     for (size_t i = 0; i < NUM_ELEMENTS_TO_READ; ++i) {
         section_offsets.push_back((size_t)rand() * interval / RAND_MAX);
     }

     int fd = open(filename.c_str(), O_RDONLY);
     if (fd < 0) {
         throw std::runtime_error("failed to open " + filename);
     }

     const size_t BATCH_SIZE = 8;
     static_assert(
         0 == (NUM_ELEMENTS_TO_READ % BATCH_SIZE), "invalid batch size");
     batched_aio_reader<BATCH_SIZE> reader(fd);

     GroupT dest1[BATCH_SIZE];
     GroupT dest2[BATCH_SIZE];
     const size_t size_on_disk = 2 * sizeof(dest1[0].X);

     GroupT *cur_dest = dest1;
     GroupT *next_dest = dest2;

     std::cout << "  Deep Async Read '" << filename.c_str() << "' ("
               << std::to_string(NUM_ELEMENTS_TO_READ) << " of "
               << std::to_string(NUM_ELEMENTS_IN_FILE) << " elements ...\n";

     {
         enter_block("Read group elements profiling");

         size_t i = 0;

         // Enqueue first requests
         for (size_t j = 0; j < BATCH_SIZE; ++j) {
             reader.enqueue_read_first_batch(
                 section_offsets[i + j] * size_on_disk,
                 size_on_disk,
                 cur_dest + j);
         }
         i += BATCH_SIZE;

         // Enqueue all requests
         for (; i < NUM_ELEMENTS_TO_READ; i += BATCH_SIZE) {
             // Enqueue next batch
             for (size_t j = 0; j < BATCH_SIZE; ++j) {
                 reader.enqueue_read(
                     ((i + j) * interval + section_offsets[i + j]) *
                         size_on_disk,
                     size_on_disk,
                     cur_dest + j);
             }

             // Wait for current and process
             reader.wait_last_read();

             // Swap (at which point, cur_cb is the next element to wait for, and
             // next_cb is unused).
             std::swap(cur_dest, next_dest);
         }

         // Wait for last request
         reader.wait_last_read();

         leave_block("Read group elements profiling");
     }
 }

Here is the call graph for this function:

◆ profile_group_read_random_seek_fd_ordered_uncompressed()

template<typename GroupT >

void profile_group_read_random_seek_fd_ordered_uncompressed	(	const std::string &	identifier,
		const	size_t
	)

Definition at line 239 of file profile_algebra_groups_read.cpp.

 {
     const std::string filename = get_filename(identifier);

     // Measure time taken to read the file
     std::cout << "  Random Access Read '" << filename.c_str() << "' ("
               << std::to_string(NUM_ELEMENTS_TO_READ) << " of "
               << std::to_string(NUM_ELEMENTS_IN_FILE) << " elements ...\n";
     {
         std::vector<GroupT> elements;
         elements.resize(NUM_DIFFERENT_ELEMENTS);

         int f = open(filename.c_str(), O_RDONLY);
         if (f < 0) {
             throw std::runtime_error("failed to open " + filename);
         }

         const size_t element_size_on_disk = 2 * sizeof(elements[0].X);
         const size_t element_interval_bytes =
             element_size_on_disk * NUM_ELEMENTS_IN_FILE / NUM_ELEMENTS_TO_READ;
         {
             enter_block("Read group elements profiling");
             for (size_t i = 0; i < NUM_ELEMENTS_TO_READ; ++i) {
                 const size_t different_element_idx = i % NUM_DIFFERENT_ELEMENTS;
                 const size_t offset = i * element_interval_bytes;
                 GroupT &dest_element = elements[different_element_idx];

                 lseek(f, offset, SEEK_SET);
                 read(f, &dest_element, element_size_on_disk);
             }
             leave_block("Read group elements profiling");
         }

         close(f);
     }
 }

Here is the call graph for this function:

◆ profile_group_read_random_seek_fd_uncompressed()

template<typename GroupT >

void profile_group_read_random_seek_fd_uncompressed	(	const std::string &	identifier,
		const	size_t
	)

Definition at line 192 of file profile_algebra_groups_read.cpp.

 {
     const std::string filename = get_filename(identifier);

     // Create a set of random indices. The i-th index to read from will be:
     //   (i + indices[i % NUM_DIFFERENT_ELEMENTS]) % NUM_ELEMENTS_IN_FILE
     std::vector<size_t> indices;
     indices.reserve(NUM_DIFFERENT_ELEMENTS);
     for (size_t i = 0; i < NUM_DIFFERENT_ELEMENTS; ++i) {
         indices.push_back(rand() % NUM_ELEMENTS_IN_FILE);
     }

     // Measure time taken to read the file
     std::cout << "  Random Access Read '" << filename.c_str() << "' ("
               << std::to_string(NUM_ELEMENTS_TO_READ) << " of "
               << std::to_string(NUM_ELEMENTS_IN_FILE) << " elements ...\n";
     {
         std::vector<GroupT> elements;
         elements.resize(NUM_DIFFERENT_ELEMENTS);

         int f = open(filename.c_str(), O_RDONLY);
         if (f < 0) {
             throw std::runtime_error("failed to open " + filename);
         }

         const size_t element_size_on_disk = 2 * sizeof(elements[0].X);
         {
             enter_block("Read group elements profiling");
             for (size_t i = 0; i < NUM_ELEMENTS_TO_READ; ++i) {
                 const size_t different_element_idx = i % NUM_DIFFERENT_ELEMENTS;
                 const size_t idx =
                     (indices[different_element_idx] + i) % NUM_ELEMENTS_IN_FILE;
                 const size_t offset = idx * element_size_on_disk;
                 GroupT &dest_element = elements[different_element_idx];

                 lseek(f, offset, SEEK_SET);
                 read(f, &dest_element, element_size_on_disk);
             }
             leave_block("Read group elements profiling");
         }

         close(f);
     }
 }

Here is the call graph for this function:

◆ profile_group_read_random_seek_mmap_ordered_uncompressed()

template<typename GroupT >

void profile_group_read_random_seek_mmap_ordered_uncompressed	(	const std::string &	identifier,
		const size_t	interval
	)

Definition at line 278 of file profile_algebra_groups_read.cpp.

 {
     const std::string filename = get_filename(identifier);

     // Read sparse elements from a mem-mapped file, ensuring we always proceed
     // forwards.

     // Measure time taken to read the file
     std::cout << "  Random Access MMap (Ordered) '" << filename.c_str() << "' ("
               << NUM_ELEMENTS_TO_READ << " elements, interval: " << interval
               << ") ...\n";
     {
         std::vector<GroupT> elements;
         elements.resize(NUM_DIFFERENT_ELEMENTS);

         const size_t element_size_on_disk = 2 * sizeof(elements[0].X);
         const size_t file_size = NUM_ELEMENTS_IN_FILE * element_size_on_disk;

         int fd = open(filename.c_str(), O_RDONLY);
         if (fd < 0) {
             throw std::runtime_error("failed to open " + filename);
         }

         const void *file_base = mmap(
             nullptr,
             file_size,
             PROT_READ,
             MAP_PRIVATE /* | MAP_NOCACHE */,
             fd,
             0);
         if (MAP_FAILED == file_base) {
             throw std::runtime_error(
                 std::string("mmap failed: ") + strerror(errno));
         }

         const size_t element_interval_bytes = element_size_on_disk * interval;

         {
             enter_block("Read group elements profiling");
             for (size_t i = 0; i < NUM_ELEMENTS_TO_READ; ++i) {
                 const size_t different_element_idx = i % NUM_DIFFERENT_ELEMENTS;
                 const size_t offset = i * element_interval_bytes;
                 GroupT &dest_element = elements[different_element_idx];
                 const GroupT *src =
                     (const GroupT *)(const void *)((size_t)file_base + offset);

                 dest_element.X = src->X;
                 dest_element.Y = src->Y;
             }
             leave_block("Read group elements profiling");
         }

         if (0 != munmap((void *)file_base, file_size)) {
             throw std::runtime_error("munmap failed");
         }
         close(fd);
     }
 }

Here is the call graph for this function:

◆ profile_group_read_random_seek_ordered_uncompressed()

template<typename GroupT , form_t Form = form_montgomery, compression_t Comp = compression_off>

void profile_group_read_random_seek_ordered_uncompressed	(	const std::string &	identifier,
		const size_t	interval
	)

Definition at line 155 of file profile_algebra_groups_read.cpp.

 {
     const std::string filename = get_filename(identifier);

     // Measure time taken to read the file
     std::cout << "  Random Access Seeks (Ordered) '" << filename.c_str()
               << "' (" << std::to_string(NUM_ELEMENTS_TO_READ) << " of "
               << std::to_string(NUM_ELEMENTS_IN_FILE) << " elements ...\n";
     {
         std::vector<GroupT> elements;
         elements.resize(NUM_DIFFERENT_ELEMENTS);

         std::ifstream in_s(
             filename.c_str(), std::ios_base::in | std::ios_base::binary);
         in_s.exceptions(
             std::ios_base::eofbit | std::ios_base::badbit |
             std::ios_base::failbit);

         const size_t element_size_on_disk = 2 * sizeof(elements[0].X);
         const size_t element_interval_bytes = element_size_on_disk * interval;
         {
             enter_block("Read group elements profiling");
             for (size_t i = 0; i < NUM_ELEMENTS_TO_READ; ++i) {
                 const size_t different_element_idx = i % NUM_DIFFERENT_ELEMENTS;
                 const size_t offset = i * element_interval_bytes;
                 group_read<encoding_binary, Form, Comp>(
                     elements[different_element_idx], in_s.seekg(offset));
             }
             leave_block("Read group elements profiling");
         }

         in_s.close();
     }
 }

Here is the call graph for this function:

◆ profile_group_read_random_seek_uncompressed()

template<typename GroupT , form_t Form = form_montgomery, compression_t Comp = compression_off>

void profile_group_read_random_seek_uncompressed ( const std::string & identifier )

Definition at line 107 of file profile_algebra_groups_read.cpp.

 {
     const std::string filename = get_filename(identifier);

     // Create a set of random indices. The i-th index to read from will be:
     //   (i + indices[i % NUM_DIFFERENT_ELEMENTS]) % NUM_ELEMENTS_IN_FILE
     std::vector<size_t> indices;
     indices.reserve(NUM_DIFFERENT_ELEMENTS);
     for (size_t i = 0; i < NUM_DIFFERENT_ELEMENTS; ++i) {
         indices.push_back(rand() % NUM_ELEMENTS_IN_FILE);
     }

     // Measure time taken to read the file
     std::cout << "  Random Access Read '" << filename.c_str() << "' ("
               << std::to_string(NUM_ELEMENTS_TO_READ) << " of "
               << std::to_string(NUM_ELEMENTS_IN_FILE) << " elements ...\n";
     {
         std::vector<GroupT> elements;
         elements.resize(NUM_DIFFERENT_ELEMENTS);

         std::ifstream in_s(
             filename.c_str(), std::ios_base::in | std::ios_base::binary);
         in_s.exceptions(
             std::ios_base::eofbit | std::ios_base::badbit |
             std::ios_base::failbit);

         const size_t element_size_on_disk = 2 * sizeof(elements[0].X);
         {
             enter_block("Read group elements profiling");
             for (size_t i = 0; i < NUM_ELEMENTS_TO_READ; ++i) {
                 const size_t different_element_idx = i % NUM_DIFFERENT_ELEMENTS;
                 const size_t idx =
                     (indices[different_element_idx] + i) % NUM_ELEMENTS_IN_FILE;
                 const size_t offset = idx * element_size_on_disk;
                 group_read<encoding_binary, Form, Comp>(
                     elements[different_element_idx], in_s.seekg(offset));
             }
             leave_block("Read group elements profiling");
         }

         in_s.close();
     }
 }

Here is the call graph for this function:

◆ profile_group_read_sequential_uncompressed()

template<typename GroupT , form_t Form = form_montgomery, compression_t Comp = compression_off>

void profile_group_read_sequential_uncompressed	(	const std::string &	identifier,
		const	size_t
	)

Definition at line 72 of file profile_algebra_groups_read.cpp.

 {
     const std::string filename = get_filename(identifier);

     // Measure time taken to read the file
     std::cout << "  Sequential read '" << filename.c_str() << "' (expecting "
               << std::to_string(NUM_ELEMENTS_TO_READ) << " elements ...\n";
     {
         std::vector<GroupT> elements;
         elements.resize(NUM_DIFFERENT_ELEMENTS);

         std::ifstream in_s(
             filename.c_str(), std::ios_base::in | std::ios_base::binary);
         in_s.exceptions(
             std::ios_base::eofbit | std::ios_base::badbit |
             std::ios_base::failbit);

         {
             enter_block("Read group elements profiling");
             for (size_t i = 0; i < NUM_ELEMENTS_TO_READ; ++i) {
                 group_read<encoding_binary, Form, Comp>(
                     elements[i % NUM_DIFFERENT_ELEMENTS], in_s);
             }
             leave_block("Read group elements profiling");
         }

         in_s.close();
     }
 }

Here is the call graph for this function:

◆ run_profile()

template<typename GroupT >

void run_profile	(	const std::string &	profile,
		const std::string &	identifier,
		const size_t	interval
	)

Definition at line 593 of file profile_algebra_groups_read.cpp.

 {
     std::cout << "profile: " << profile << "\n";
     std::cout << "identifier: " << identifier << "\n";

     if (!ensure_group_elements_file_uncompressed<GroupT>(identifier)) {
         return;
     }

     class profile_selector<GroupT> p;

     if (profile == "all") {
         for (const auto &pair : p.s_profile_functions) {
             run_profile<GroupT>(pair.first, identifier, interval);
         }
         return;
     }

     auto it = p.s_profile_functions.find(profile);
     if (it == p.s_profile_functions.end()) {
         throw std::runtime_error(std::string("no such profile: ") + profile);
     }

     it->second(identifier, interval);
 }

◆ usage()

void usage ( const char *const argv0 )

Definition at line 581 of file profile_algebra_groups_read.cpp.

 {
     std::cout << "Usage: " << argv0 << " [flags]\n"
               << "\n"
               << "Flags:\n"
               << "  --interval <interval>       Use sparse interval (default "
               << MAX_SPARSE_ELEMENT_INTERVAL << ")\n"
               << "  --profile <profile name>    Run a specific profile "
                  "(default \"all\")\n";
 }

Here is the caller graph for this function:

Classes

Typedefs

Functions

Typedef Documentation

◆ profile_fn

Function Documentation

◆ cb_enqueue()

◆ cb_init()

◆ cb_wait()

◆ ensure_group_elements_file_uncompressed()

◆ get_filename()

◆ main()

◆ profile_group_read_random_batch_aio_ordered_uncompressed()

◆ profile_group_read_random_seek_fd_ordered_uncompressed()

◆ profile_group_read_random_seek_fd_uncompressed()

◆ profile_group_read_random_seek_mmap_ordered_uncompressed()

◆ profile_group_read_random_seek_ordered_uncompressed()

◆ profile_group_read_random_seek_uncompressed()

◆ profile_group_read_sequential_uncompressed()

◆ run_profile()

◆ usage()
